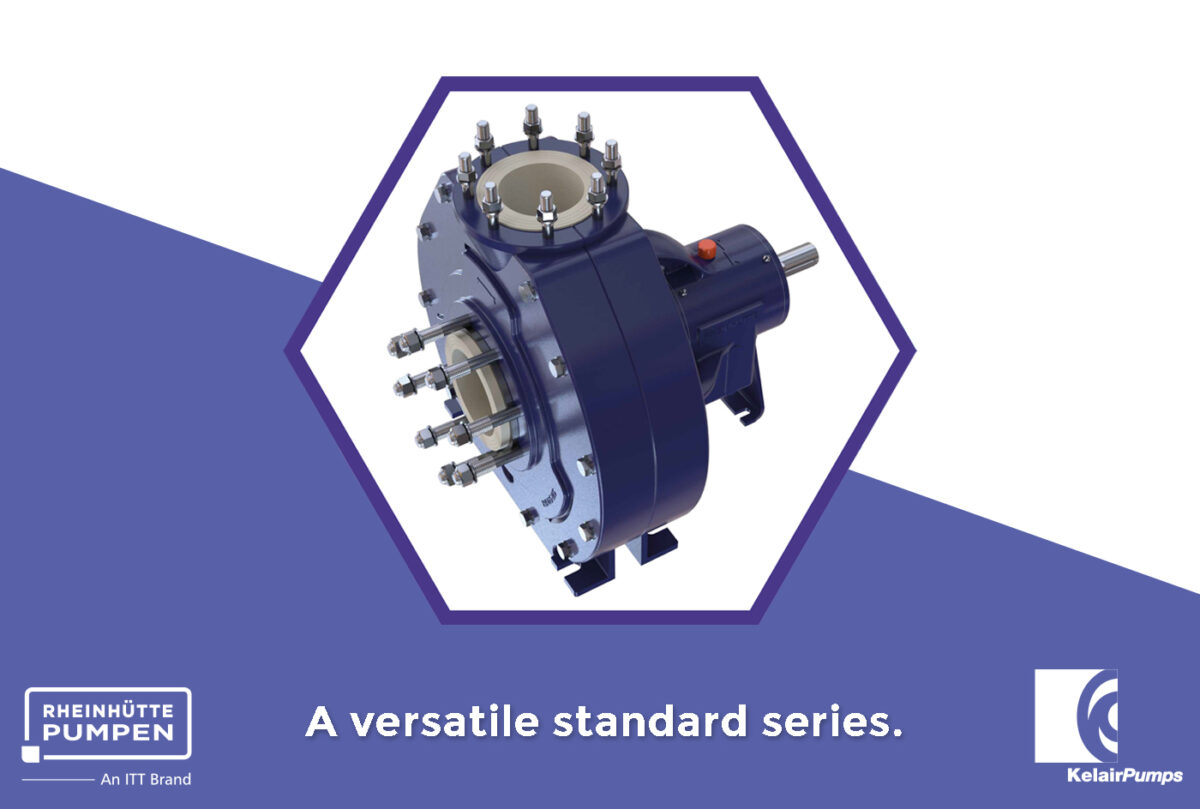

CPDR and RCNKu: two names, one concept.

Small and large - CPDR and RCNKu. The two types differ from each other in their detailed design and manufacture. Materials and sealings are the same.

Conveyance requirements can be flexibly and economically met with a wide range of 21 difference pump sizes with capacities of up to 2,500m³/h. The pump size and materials will be specifically selected to meet your requirements. Flow-optimised hydraulic systems ensure efficiency and economy.

Rheinhutte standardised chemical pumps in plastic are interchangeable with every other standardised chemical pump of the same size.

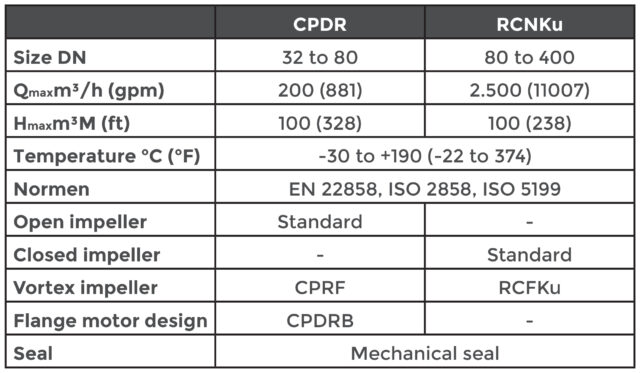

Design Features

• Design: horizontal, single-stage; end suction, top discharge
• Construction: back-pull-out design according to ISO 2858
• Casing design: single volute casing
• Bearing lubrication: oil or grease lubrication
• Installation versions: base frame welded or base plate cast
• Temperature range: -20ºC to +60ºC
• Max. solids content: approx. 5% (with free flow design approx. 30%

We know the importance of choosing the right equipment to match your process. Whatever your pump requirements, we will help you achieve the best pumping solution.
