With over 55 years of trusted leadership and expertise, SANDPIPER is the only pump guaranteed to work every time.

The SANDPIPER air-operated double-diaphragm (AODD) product portfolio offers unique series options that have been designed as solutions for your most challenging and critical problems. Over five decades of innovation have resulted in many class-leading options to provide you with the perfect pump for your unique application needs. You can trust SANDPIPER’s wide range of products to satisfy everything from your most basic to most demanding requirements.

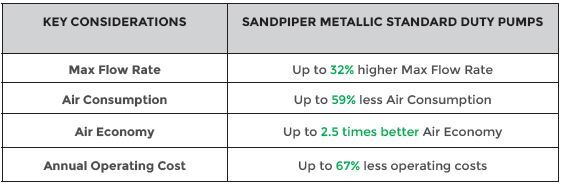

SANDPIPER’s unique combination of best-in-class max flow rates and lowest air consumption makes them the most efficient and economical pumps available.

KEY FEATURES

• Durable-diaphragm connecting rods: Reliable and consistent diaphragm control
• ESADS + air valve: Externally serviceable air distribution system
• Dynamic manifold connections: 90° - 180° rotation options
• Superior dry prime: Up to 24 ft (7m) of water
• All bolted construction: Durable and high-pressure capable
• Bottom discharge: For pumping out of tough areas
• Solids handling range: +1” (25mm) to 3” (76mm)

EXTERNALLY SERVICEABLE AIR DISTRIBUTION SYSTEM (ESADS+)

Exclusive and unique to SANDPIPER, the externally serviceable air distribution system (ESADS+) allows for quick and easy access to the pilot and spool valves. Ideal for applications where uptime is not optional, all SANDPIPER pumps feature ESADS+ technology for quick remote site serviceability in under five minutes.

• On-Off-On Reliability Guaranteed:

Independent of the pilot valve position, the cross-drilled pressure ports in the main directional air valve spool provide a pneumatic bias of the spool at either end of travel. This is accomplished by directing (inner) chamber pressure to the end of the spool, boosting and sustaining pilot pressure until point-of-shift of the pilot valve.

The benefit of this technology is the elimination of spool drifting due to vibration and/or unbalanced pressure or system conditions.

• Remote Site Serviceability - In-line:

With the simple removal of only four bolts on the outside of the ESADS+ Air Distribution System, you can slide off the air valve and pilot valve components. This gives you quick access to the PATENTED, cross-drilled pilot shuttle containing the two O-rings that are the most common part to fail on any AODD pump.

Only SANDPIPER’s ESADS+ feature allows access to the complete ADS without removing the pump from service. Repair or clean in 5 minutes vs. 55 minutes for competitors.

PUMP TYPES

• Food and beverage / Sanitary
• Heavy duty / Signature Series
• High pressure
• Oil and gas
• Standard Duty / Evolution
• Submersible
• UL compliant
• EODD

Kelair Pumps is the exclusive Australian Distributor of Sandpiper.

We know the importance of choosing the right equipment to match your process. Whatever your pump requirements, we will help you achieve the best pumping solution. When pump knowledge matters, rely on Kelair.
