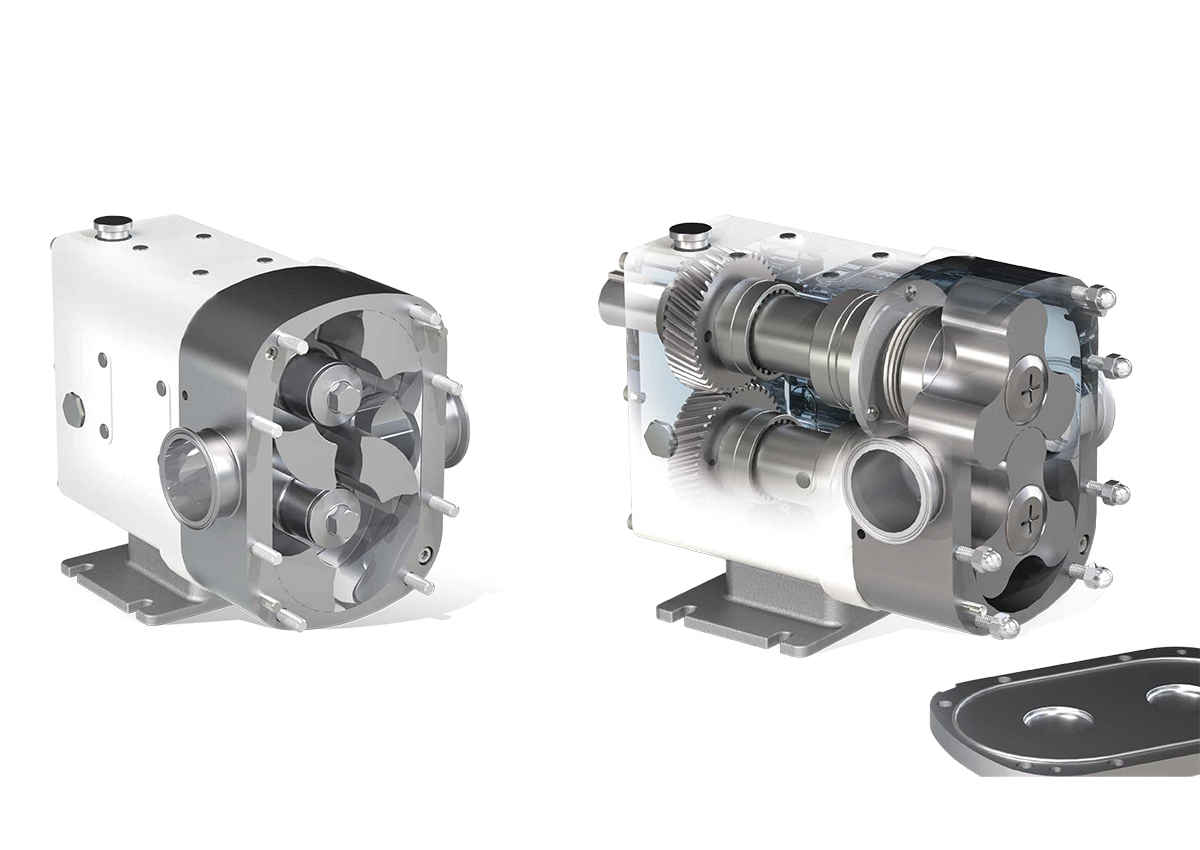

The first hybrid rotary lobe and circumferential piston pump with front loading seals.

The Revolution pump is a continuation of innovation at Wright Flow as the first hybrid rotary lobe (RLP) and circumferential piston pump (CPP) with front loading seals. The general purpose lobe pump is a good fit for installations where both lobe and circumferential piston technologies can be used to optimize process efficiency.

With the most advanced design in the CPP industry, including Clean In Place (CIP) as standard without compromising efficiency, it is the only pump available with patented hybrid technology, allowing CP or RL configurations.

Features & Benefits

CLEANABILITY
• Efficient CIP (Clean In Place) ability is standard
• Self draining pump head from innovative cusps and cusp reliefs
• Innovative seal design with no dead zones and a dynamic leak path

EASE OF MAINTENANCE
• Fast, front loading seal changes while pump is still in line
• Front access shimming for setting rotor clearance significantly
reduces maintenance time
• Convenient preventive maintenance parts kits available

PERFORMANCE
• Improved volumetric efficiency in low and high viscosity applications
• Up to 15% better flow performance than competitors’ CIP
configuration with CPP version
• Gentle handling of solids and shear sensitive products
• Long-life durability from heavy duty shafts, bearings and helical gears

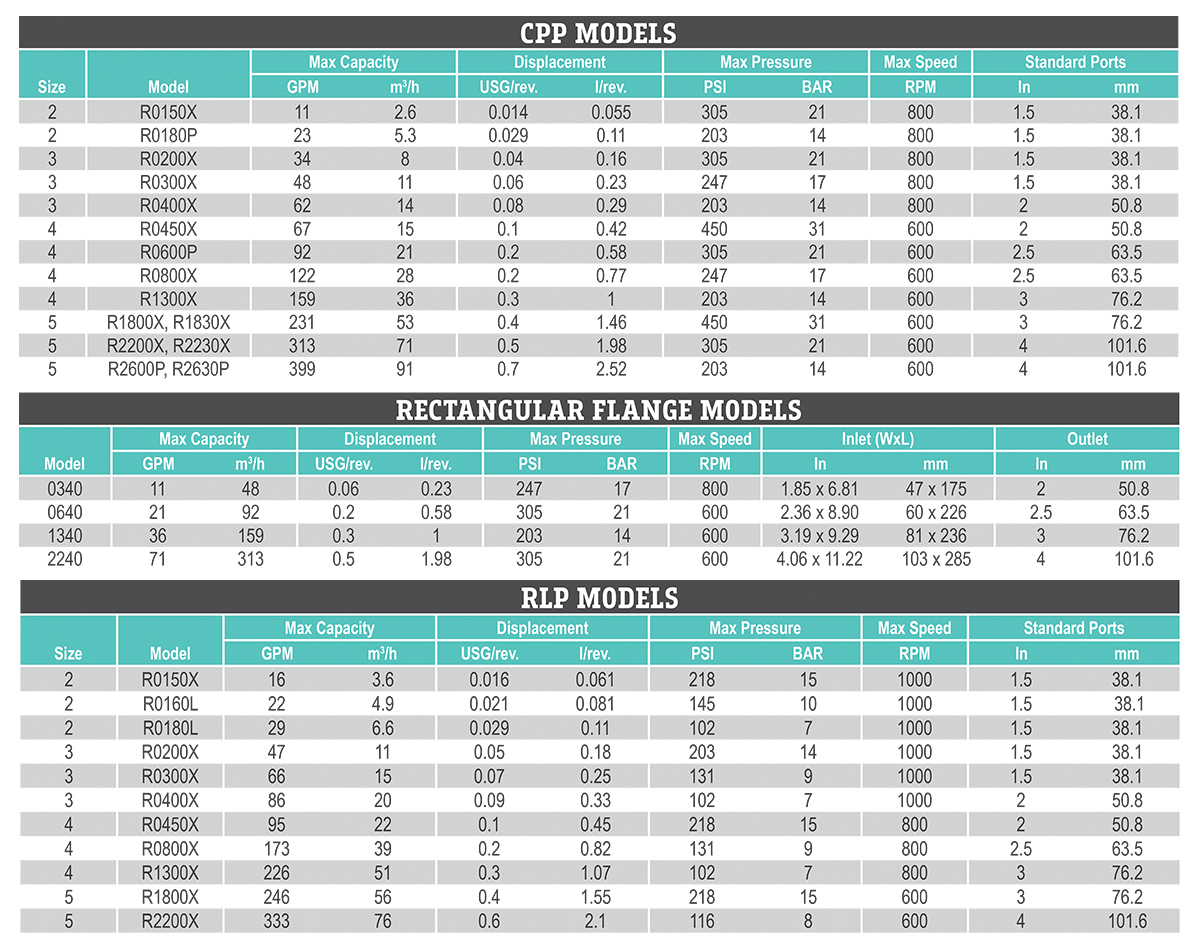

Performance
