PulsaPro pumps are positive displacement reciprocating metering pumps that combine the high efficiency of a plunger pump with the sturdiness of a diaphragm seal to eliminate leakage.

They provide maximum accuracy and repeatability with the dependability of a 5 year drive train warranty.

Available in a wide range of materials and diaphragm designs, PulsaPro pumps offer a diverse range of fluid handling solutions.

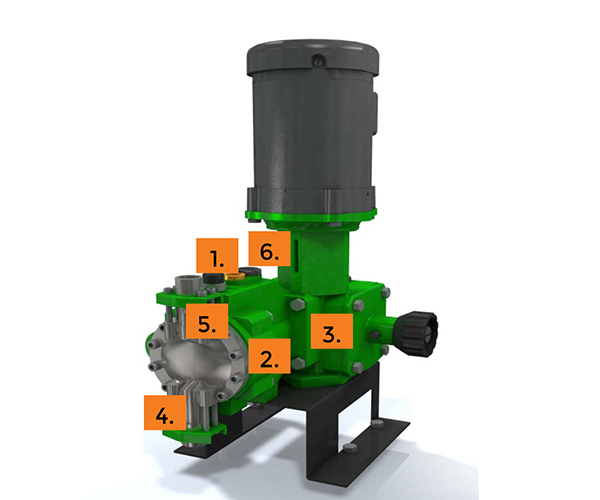

Design Features

1. Push-to-Purge Valve: Maintains hydraulic balance by automatically removing air entrained in the hydraulics while also purging excess oil.
2. High Performance Valve: Shortens downtime, reduces maintenance costs and provides resiliency agains system upsets.
3. Hydraulic Bypass Valve: Designed with safety in mind, this externally adjustable internal hydraulic relief valve protects the pump from over-pressurization.
4. Four Bolt Tie Bar: Helps promote leak free operation and resists connection forces (pipe stress), by providing rigidity to the check valves, and facilitating the easy removal of check vales without breaking piping.
5. Check Vales: Three component check valve system (fluted valve guide, gravity seating check valve, and knife edge seat) ensures accuracy and longevity.
6. Diagnostic Window: Provides a visual indication of the pump’s performance, operation and diaphragm integrity.

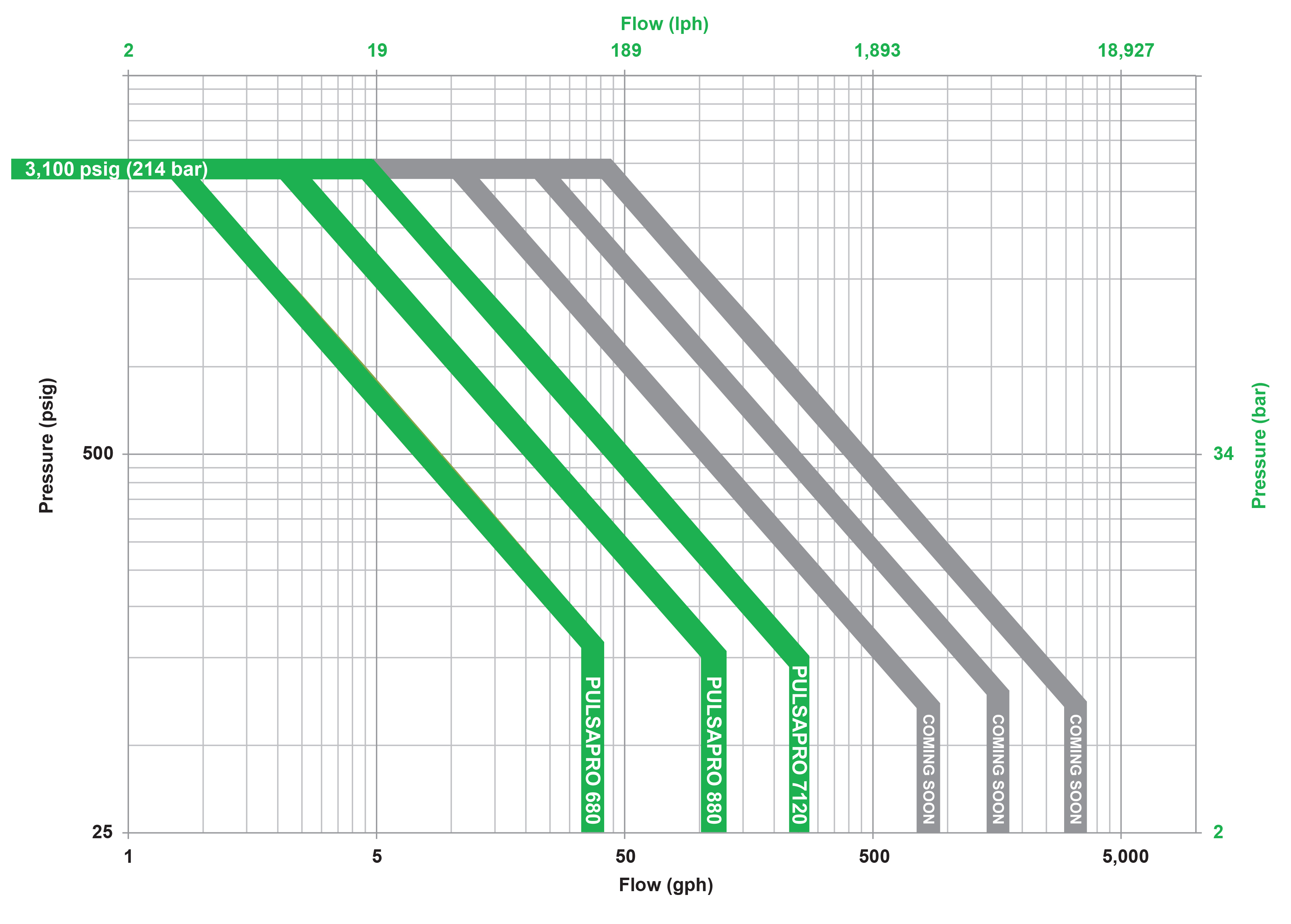

Performance

Find out more about the PulsaPro Series by clicking here.

We know the importance of choosing the right equipment to match your process. Whatever your pump requirements, we will help you achieve the best pumping solution.
