No leaks by design.

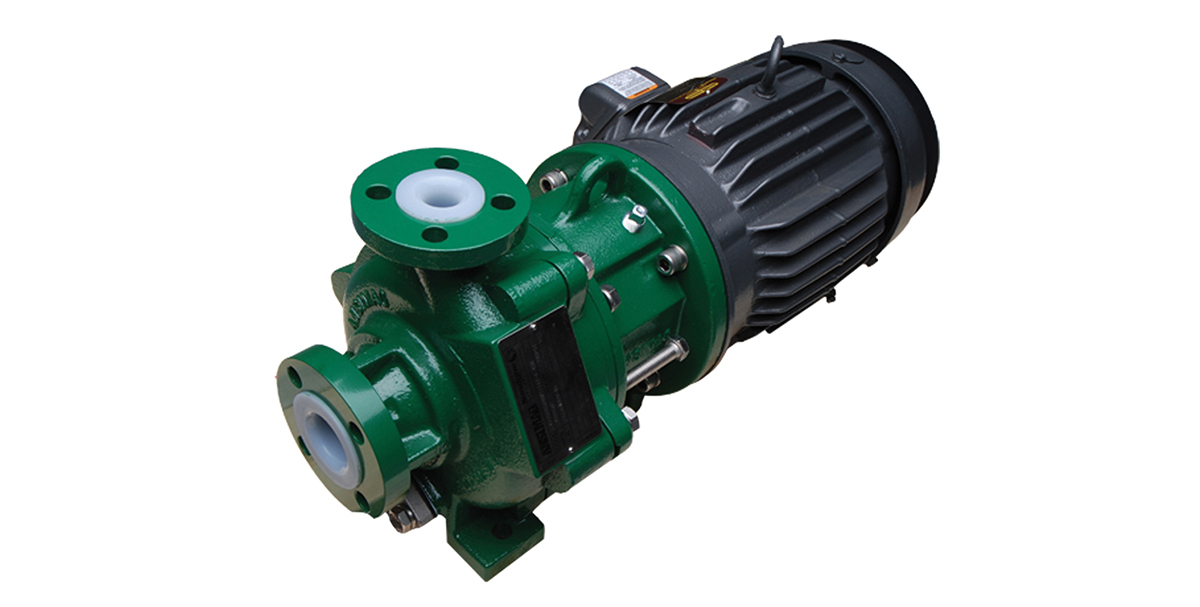

The Ansimag K-Plus is an ANSI/ASME compliant, sealless, non-metallic, magnet drive centrifugal pump. This standard pump covers a wide range of sizes and includes standard external dimensions allowing for interchangeability with other brands and manufacturers.

Also available in a low system temperature configuration, the K Plus is ideal for most corrosive or acidic applications in the chemical, power and industrial, hydrocarbon and oil and gas industries.

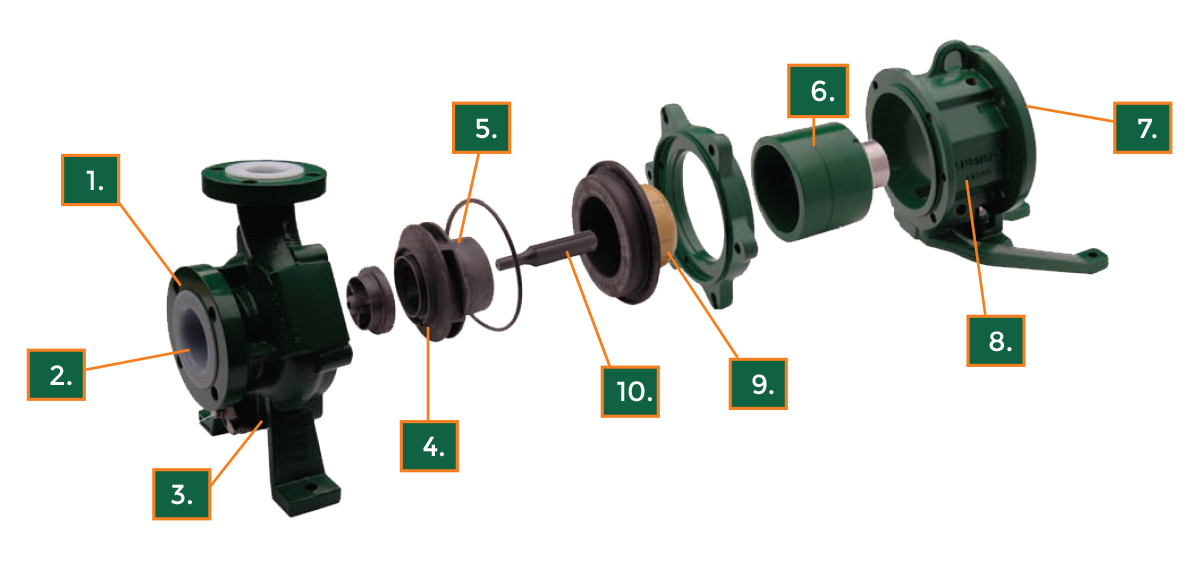

Features and Benefits

1. Durable Constructions
   Ductile iron exterior is designed for heavy-duty chemical application

2. Chemically Resistant Lining
   Carbon Fiber reinforced ETFE is chemically resistant to most chemicals.
3. Zero Leakage
   ANSIMAG pumps feature a single, fully confined, O-ring to eliminate possible leakage.
4. Replaceable Impeller
   Single piece closed impeller can be easily changed out if process conditions change.
5. Fully Encapsulated Drive
   Fully encapsulated inner drive provides unsurpassed resistance to chemical attack.
6. Magnetic Drive
   Neodynium Iron Boron magnets provide a powerful, permanent magnetic coupling.
7. Close Coupled
   With a small footprint, quiet operation and low maintenance, the pump features standard, off the shelf flange motors.
8. Corrosion Protection
   Powder Coat exterior is more durable and chemically resistant than Epoxy based paints.
9. Sealless Containment
   Lined Kevlar Fiber/Epoxy construction provides unsurpassed pressure handling capability.
10. Radial Thrust
    Fully supported shaft eliminates deflection for maximum durability.

Applications

• Corrosive and Toxic Services
• Chemical Processing and Transfer
• Water Supply, Pollution and Wastewater
• Produce Water Transfer
• Brine Injection and Disposal
• Agrochemicals
• Reactor Feed
• Industrial Waste
• Coatings and Plastics
• Mineral Processing
• Metal Pickling and Plating
• Cargo Loading and Unloading
• Battery Manufacturing

Materials

• Carbon Fiber Reinforced ETF
• Glass Fiber Reinforced PFA (impeller parts
• ETFE or PFA linded ductile iron (casing



Ansimag K Plus - Reliability Realized.
