A world-class pump line built to ANSI standards.

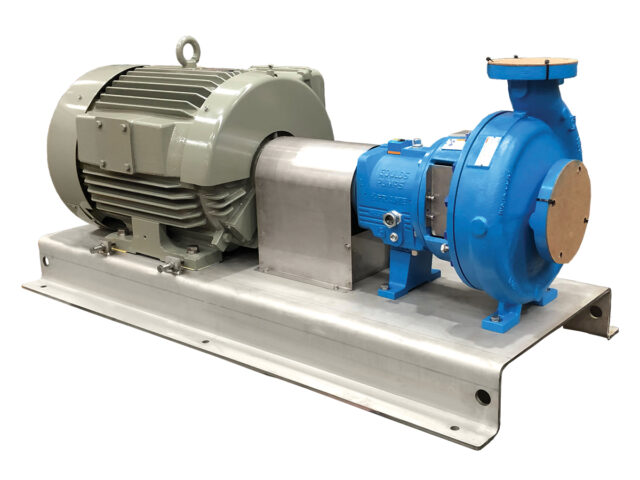

The Goulds 3196 ANSI Standard Dimension Process Centrifugal Pump immediately became the standard in the industry when it was as first introduced in 1961. Today, the number of installations attest to its remarkable performance.

Chemical, petrochemical, pulp and paper, primary metals, food and beverage and general industries know they can make no better choice than the best - Goulds Model 3196.

SPECIFICATIONS

• Capacities to 1590 m³/h
• Heads to 223 m
• Temperatures to 371°C
• Pressures to 26 bar

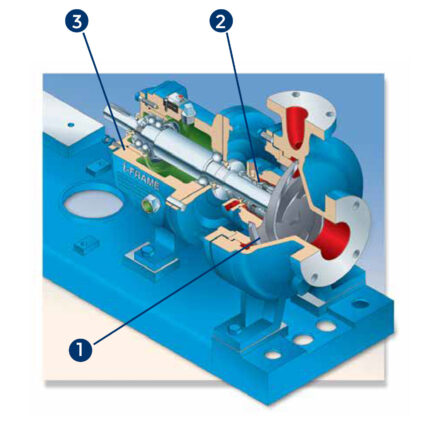

BEFORE SELECTING A PROCESS PUMP ...

Consider these design features for extending your pump performance:

1. Impeller - Must be designed for long-term, maintainable performance and minimum hydraulic loads for maximum reliability.
2. Seal Chamber - Must be designed for favorable seal environment — proper heat dissipation and lubrication of seal faces. The design must also be able to handle tough services: liquids containing solids, air or vapors.
3. Power End - Must be designed for optimum bearing life, effective oil cooling, and minimum shaft deflection. Onboard condition monitoring provides early warning of potential failures, before they occur.

The Goulds 3196 process pump is a winner with a range of key features to extend your pump performance.

FEATURES

• INPRO VBXX-D Hybrid Labyrinth Seals
• Premium Severe-Duty Thrust Bearings
• Heavy Duty Shaft and Bearings
• Optimized Oil Sump Design
• One Inch Bull’s Eye Sight Glass
• i-FRAME Power End
• Magnetic Drain Plug
• Heavy Walled Casing
• Fully Open, Adjustable Impeller
• Patented Taper Bore Plus Seal Chamber
• Sealing Flexibility
• Rigid Frame (and Casing) Feet

We know the importance of choosing the right equipment to match your process. Whatever your pump requirements, we will help you achieve the best pumping solution. When pump knowledge matters, rely on Kelair.
