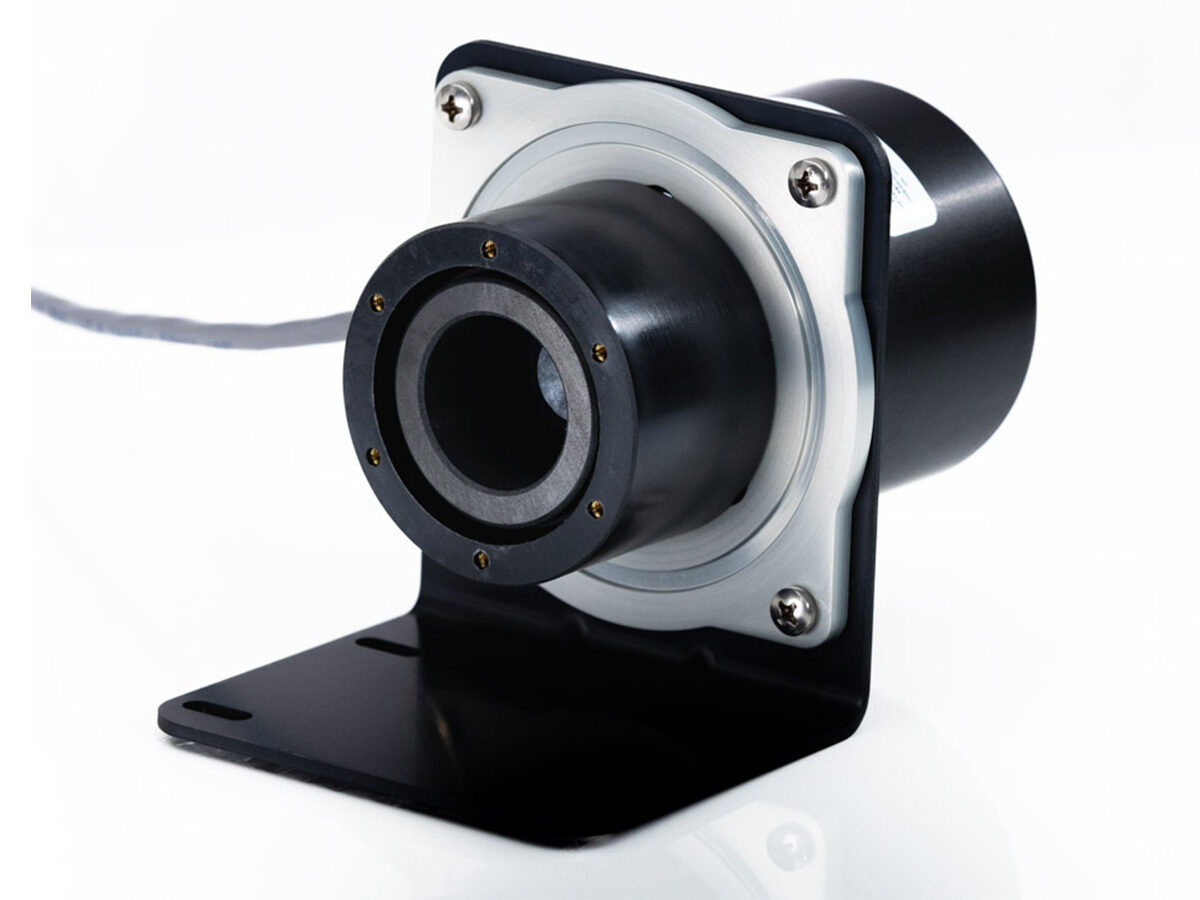

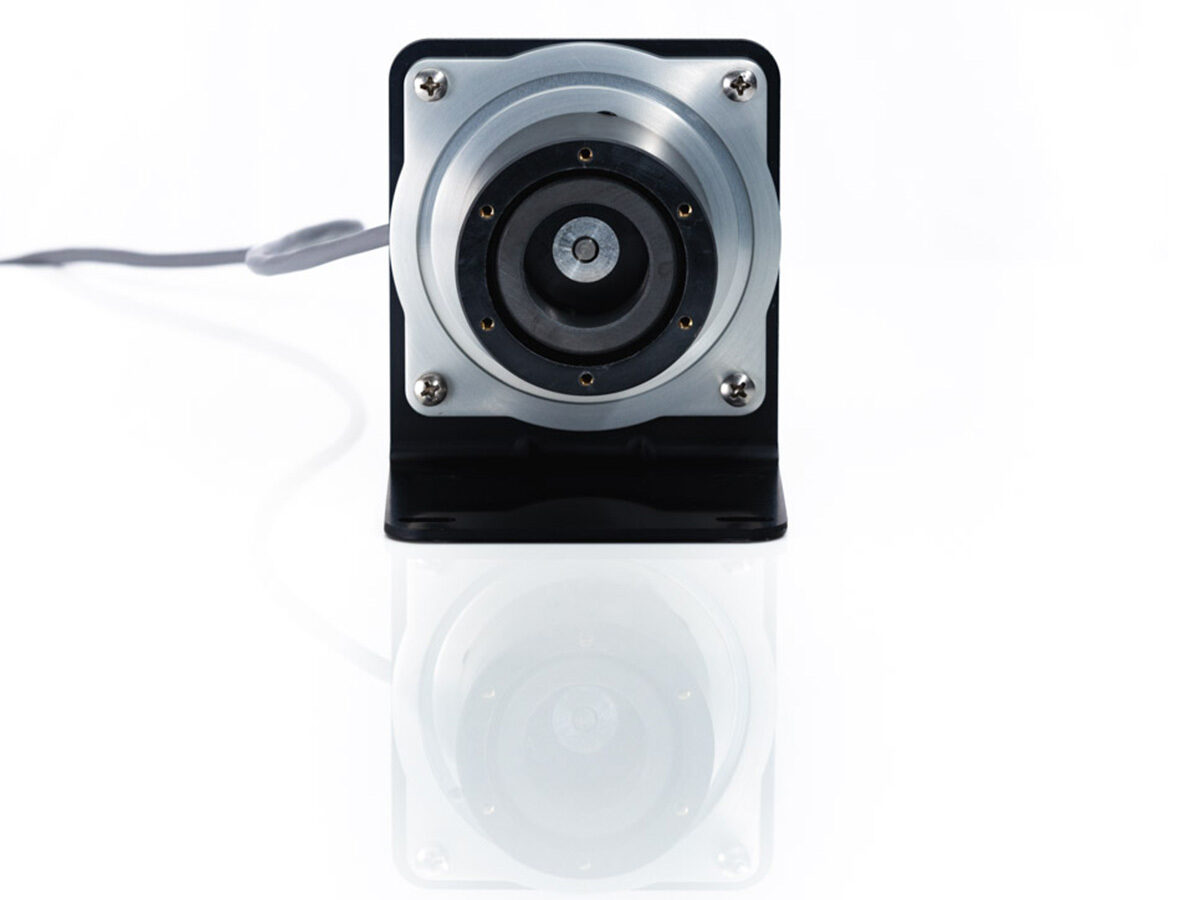

The DB-380.B is a 24VDC Brushless Drive for the popular GA and GJ series pumps. Designed for continuous duty and featuring 0-5VDC speed control and tach output, this drive performs well in a variety of applications. It differs from the DB-380.A only by the drive to pump mount configuration.

Technical Data

• Drive type: Brushless
• Weight: 0.91 kg
• Power (max): 70 W
• Torque (max): 105.92 mNm
• Power Source: 24 VDC
• Mount: B-Mount
• Speed Control: 0-5 VDC
• Connection: Wire leads
• Enclosure: IP55
• Recommended speed range: 500-4600 rpm
