Micropump : EagleDrive DEMSE

DC Drives

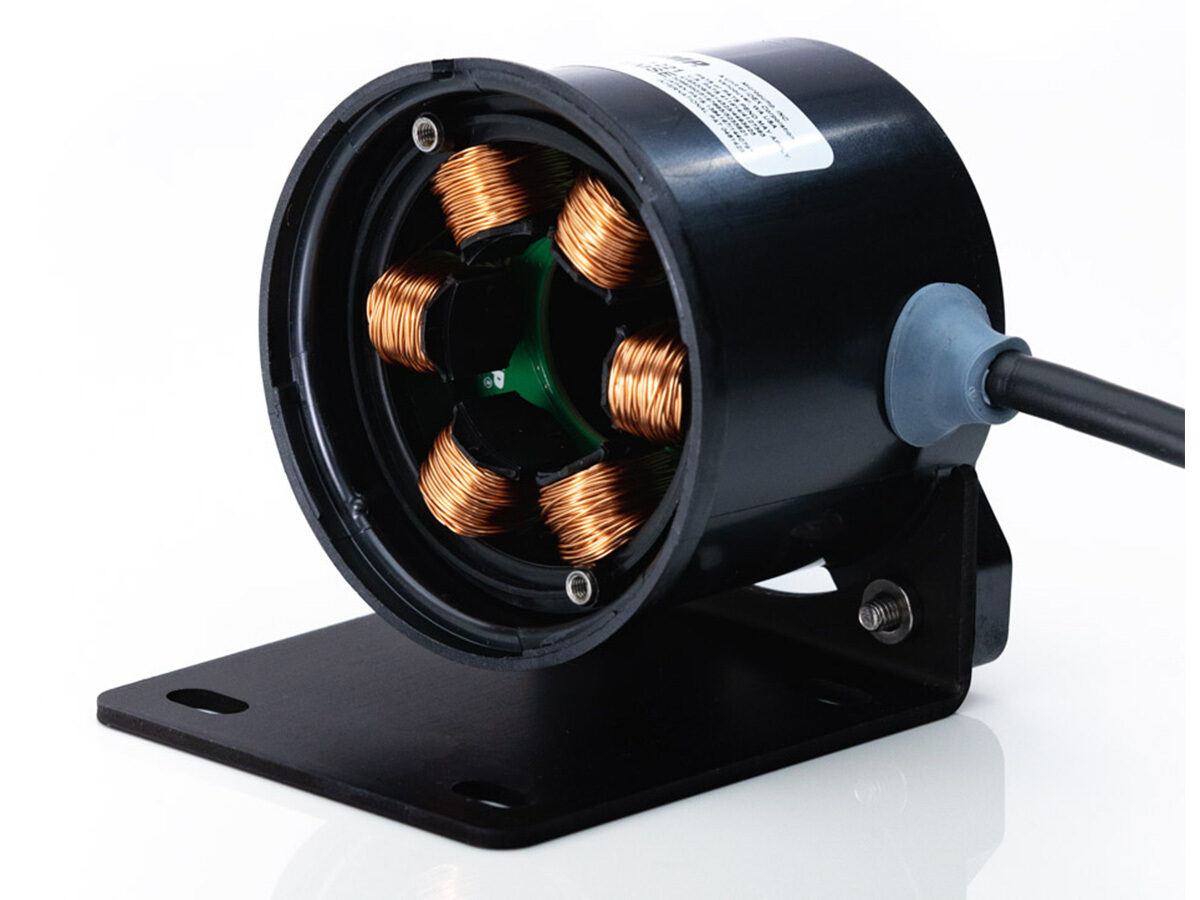

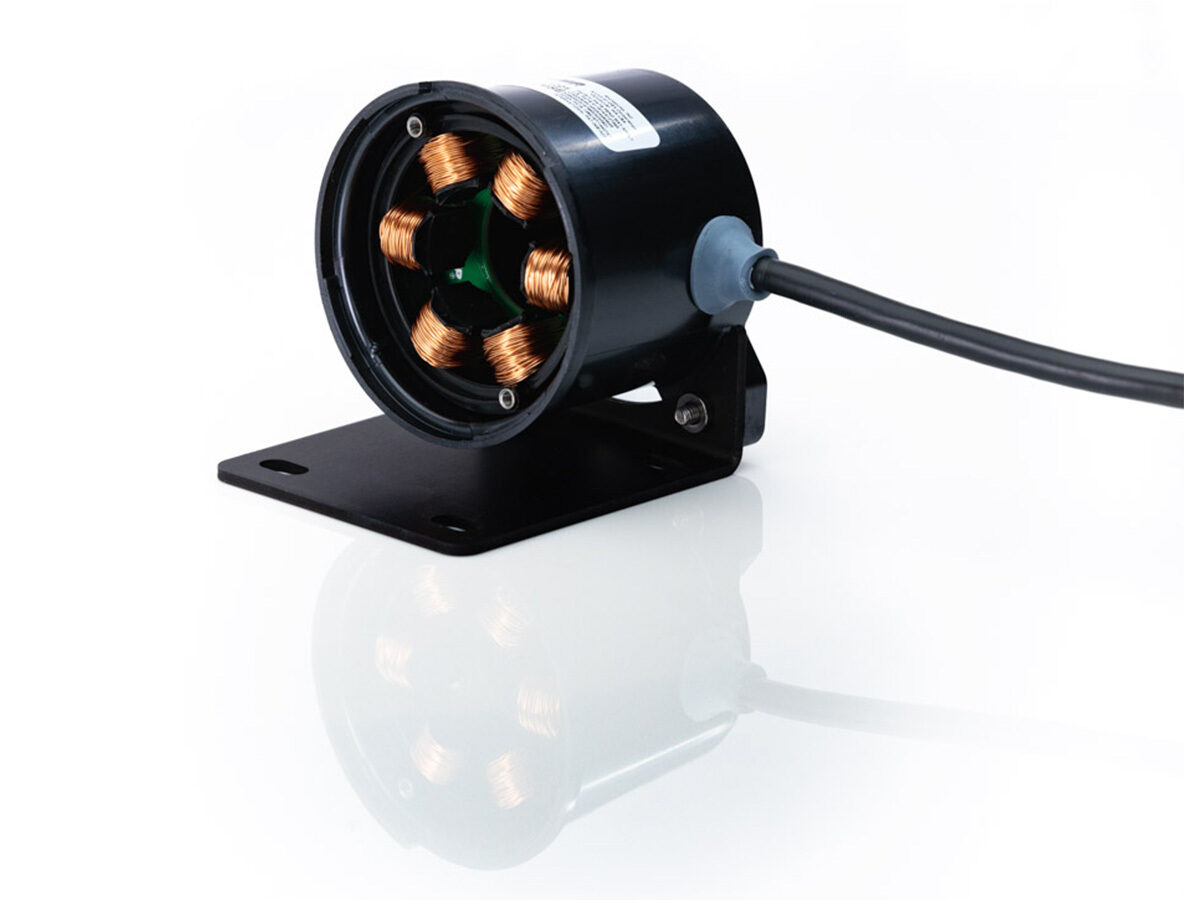

The EagleDrive DEMSE is an elecromagnetic drive for Micropump Series GA, GAF, GJ, GJR, and CA pumps. It is a very compact, high-performance drive that enables our pumps to address a wide range of applications. The EagleDrive is an innovative brushless DC motor with no moving parts for outstanding efficiency and reliability. With variable speed operation, a tachometer and error output, and with fwd/rev capabilities, the EagleDrive is the right choice for many designs.

Key Features

• Small package - ease of integration
• No moving parts - higher reliability and longer life
• High torque - improved flow rates with continuous duty pressures
• Up to 10,000 RPM - Higher flow rates
• Wide Range of Power Supply Voltages (10-38 VDC) - ease of integration

Technical Data

• Drive type: Electromagnetic
• Weight: 0.27 kg
• Power (max): 48 W
• Torque (max): 70.62 mNm
• Power Source: 10-38 VDC
• Mount: SE-Mount
• Speed Control: 0-5V
• Connection: Wire leads
• Recommended speed range: 250-8000 RPM
