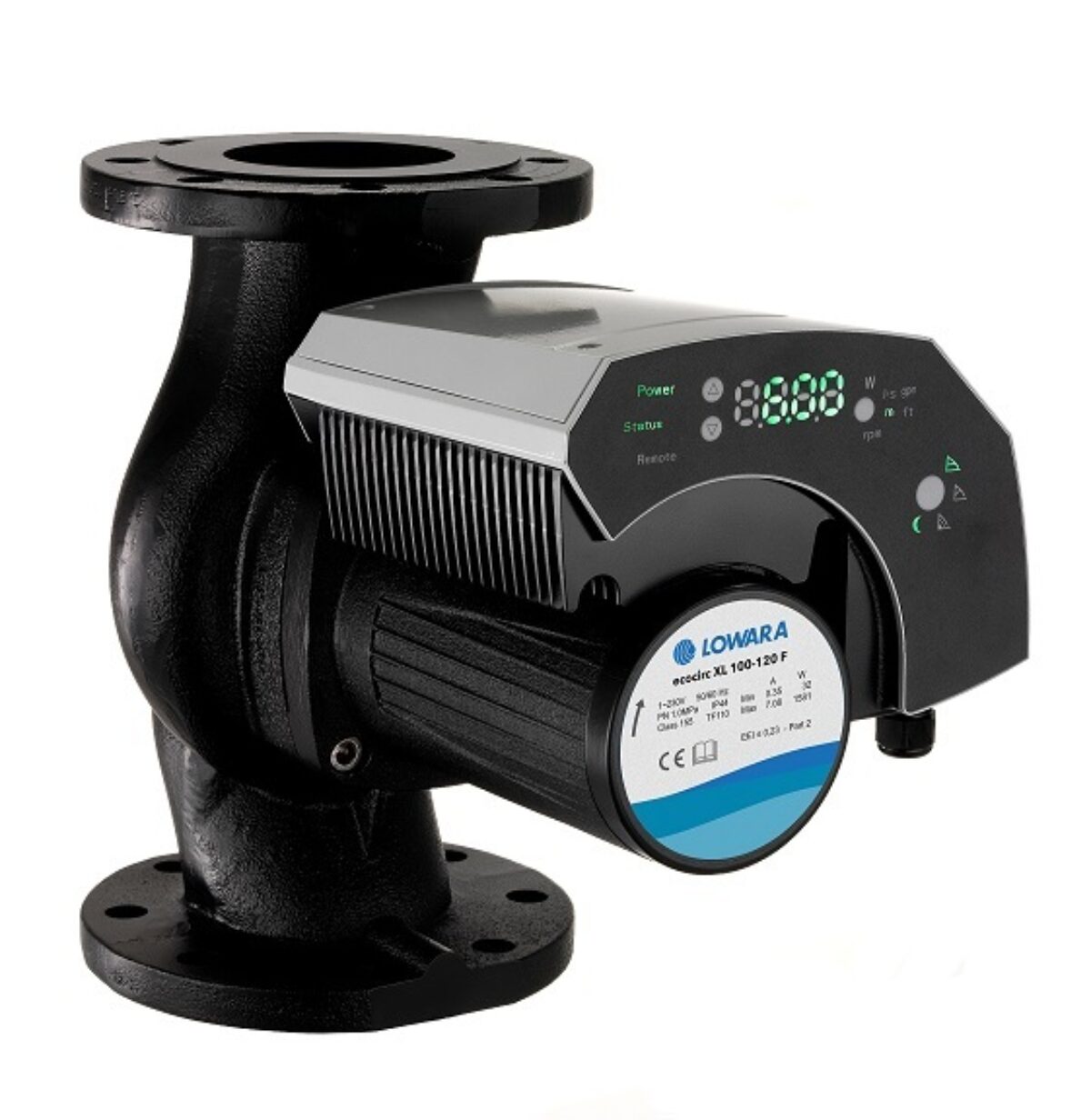

Lowara : Ecocirc XL Circulator

Single and twin head high efficiency circulators

The Ecocirc XL and XL Plus Series are high efficiency circulators designed for commercial heating with electronically commutated permanent magnet technology. With only four buttons, it’s easy to set up and operate the Ecocirc XL. Featuring advanced settings that can be accessed from a PC, tablet or smartphone via built-in communication BUS or Wi-Fi (optional module).

Specifications

• Delivery: up to 70 m³/h for single-head pumps and up to 135 m³/h for twin pumps
• Head: up to 18m
• Power: from 5 to 1560 watts
• Maximum operating pressure: 10 bar
• Temperature of pumped liquid: from -10 °C to 110 °C

Materials

• Cast Iron or Stainless Steel for Pump Body
• Bronze available

Applications

• Hot water heating systems
• Air conditioning and cooling systems
• Domestic hot water systems
• Solar systems
• Geothermal systems
