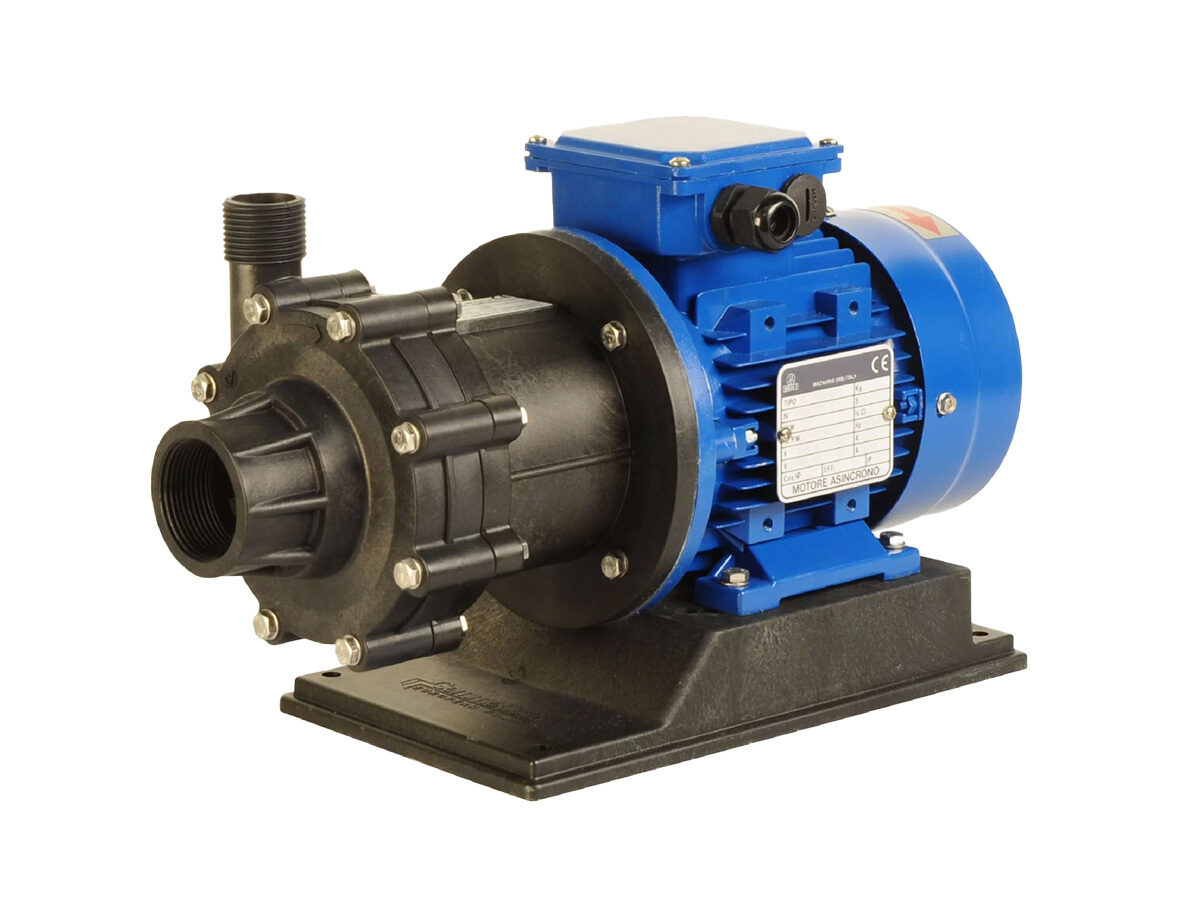

GemmeCotti : HTM PP/PVDF
Anti-corrosion, industrial magnetic drive centrifugal pump, suitable for pumping acids and bases fluids and highly corrosive liquids.
Mag drive centrifugal pumps series HTM PP/PVDF are made of thermoplastic materials (Polypropylene and PVDF) and are suitable for high corrosive liquids.
Thanks to the innovative magnetic drive system, the HTM PP/PVDF pump is designed with a special seal-less configuration that is suitable for transferring acids, chemicals, corrosive and dangerous liquids. This is due to the high chemical resistance of their construction materials and to the absence of leakage and emissions. The structure is really simple and it requires very little maintenance with consequent saving in terms of repairing, spare parts and machine downtime (costs during the pump life). This type of pump is not suitable for transferring liquids with solids.
Performance Criteria
- Capacity: To 130 m3/h
- Maximum head: 48 mlc
- Maximum temperature: Polypropylene: 70°C - PVDF: 90°C
- Maximum viscosity: 200 cSt
Materials
- Materials available: PP/PVDF
Features
- Leak-free magnetic design - No mechanical seals, no leakage and emissions, no motor/pump alignment, environmental sustainability
- Reliability - Unlike many centrifugal pumps on the market the pump head is fixed to the bracket with 8 bolts, guaranteeing a firm fastening and mitigating casing deformation under pressure
- Manufacturing materials - made of thermoplastic materials that are compatible with most acids and basic liquids, chemicals and other dangerous fluids
- Bushing - The large size of the front bushing used ensure high resistance to axial thrust
- Magnets - The HTM pumps are equipped with NdFeB magnets that ensure a high magnetic torque
- Static shaft - Made of an extremely resistant ceramic material, which guarantees the maximum stability and resistance to aggressive chemicals
