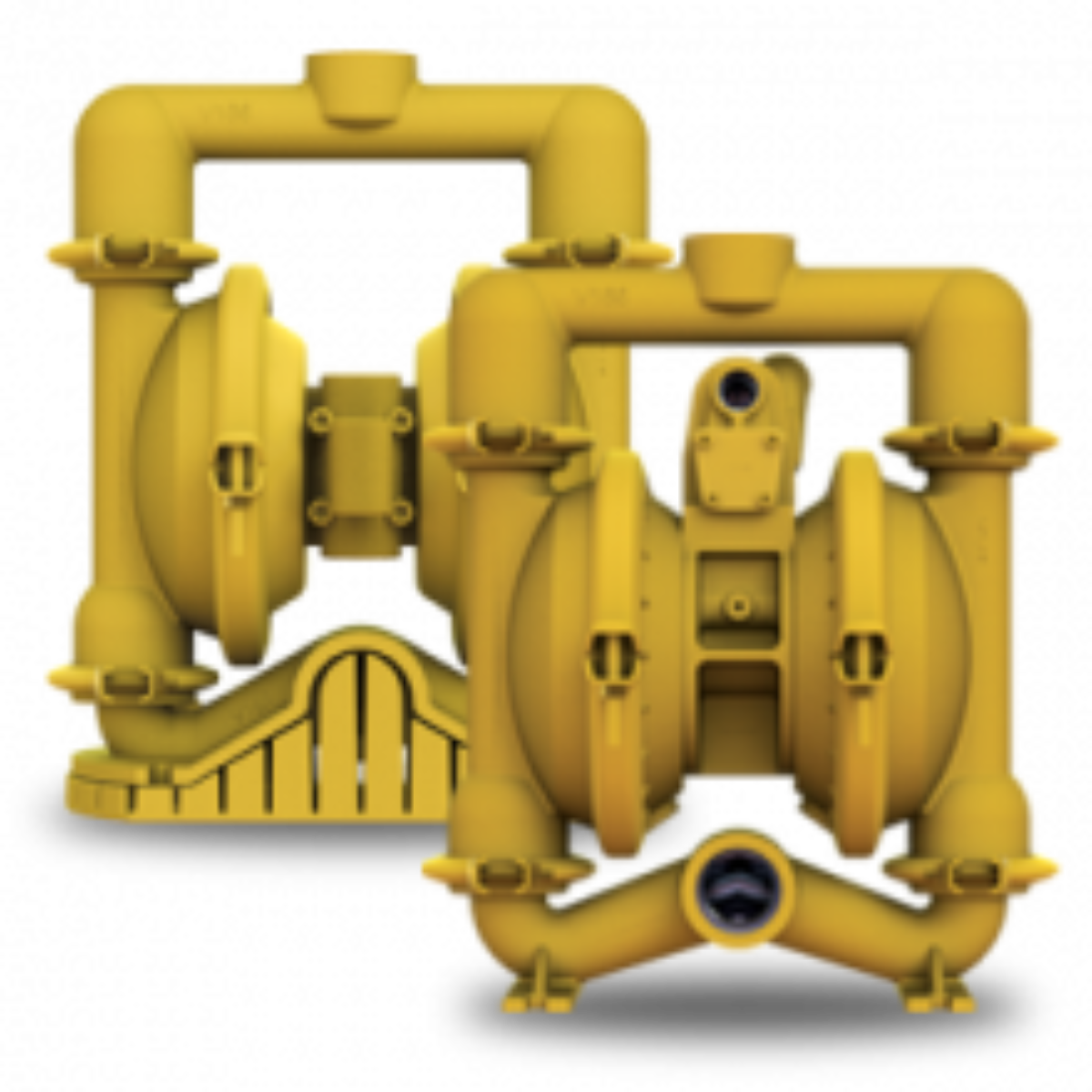

Versa-Matic : Metallic Clamped Ball Valve Pump

Metallic clamped ball valve pumps demonstrate superior positive seal for safe, reliable fluid transfer

Versa-Matic ® exclusively offers the revolutionary Elima-Matic ® air distribution system, which virtually eliminates pumping problems and ensures that your operations run smoothly. The high quality of Versa-Matic pumps, combined with the Elima-Matic air distribution system delivers an optimum AODD pump experience.

The classic metallic clamped design has proven performance and interchangeability. The clamp is simple to assemble and has a rigid and durable construction design that can be used for a wide range of applications.

Clamped metallic pumps are offered in aluminium, cast iron, stainless steel, hastelloy C in a bolted leak free design.

Performance Criteria:

• Capacity: To 1060 l/min
• Head: To 8.6 bar
• Temperature: To 150°C
• Viscosities: Highly viscous
• Sizes: 1¼” to 3”

Models, Sizes & Performance:

• E4 - 1 ¼"
  • Is available in either plastic or metal
  • Supplies a corrosion-resistant air section
  • Is self-priming
  • Provides dimensional interchangeability with Wilden 1-1/2" pumps
  • Offers horizontal discharge model on bolted metallic pump
• E2 - 2"
  • Is available in either plastic or metal
  • Avoids blow-by when the pump is online but not in use
  • Is self-priming
  • Provides dimensional interchangeability with Wilden™ 2" pumps
  • Offers horizontal discharge model on bolted metallic pump
  • Available in threaded or flanged connections, drops into hard piped installation/application
• E3 - 3"
  • Is available in either plastic or metal
  • Can handle infinite variable flows up to 90% solids
  • Is self-priming
  • Provides dimensional interchangeability with Wilden 3" pumps
  • Offers screen mount on aluminum model
  • Available in threaded or flanged connections, drops into hard piped installation/application
