Grundfos : MULTILIFT
State of the art lifting stations for wastewater collection and disposal
The Grundfos MULTILIFT is a compact, powerful lifting station that offers a complete wastewater collection and disposal solution for commercial buildings in any terrain.
A MULTILIFT solution makes costly excavations, reconfiguration work and the installation of a deep pit, pumps, level switches, pump wiring and controllers, unnecessary. The MULTILIFT lifting stations are complete solutions – pre-assembled, pre-wired, preset and ready for installation. With footprints between 0,25-2m2, they are able to discharge up to 100m3 of wastewater per hour.
- Special tank, lightweight and extremely pressure stable
- Great capacity
- Patented tank base design
- Powerful, energy efficient pumps
- Leakage and odour free
- Intelligent controls
- Single or double stations
- Clog-free vortex hydraulics
- Fast and clean service
- Highly reliable
Technical Data
- Capacity: Up to 100 m3/h
- Maximum head: To 46m
Applications
- Water/Wastewater collection and disposal
- Septic tank drainage
- Backflow
Models

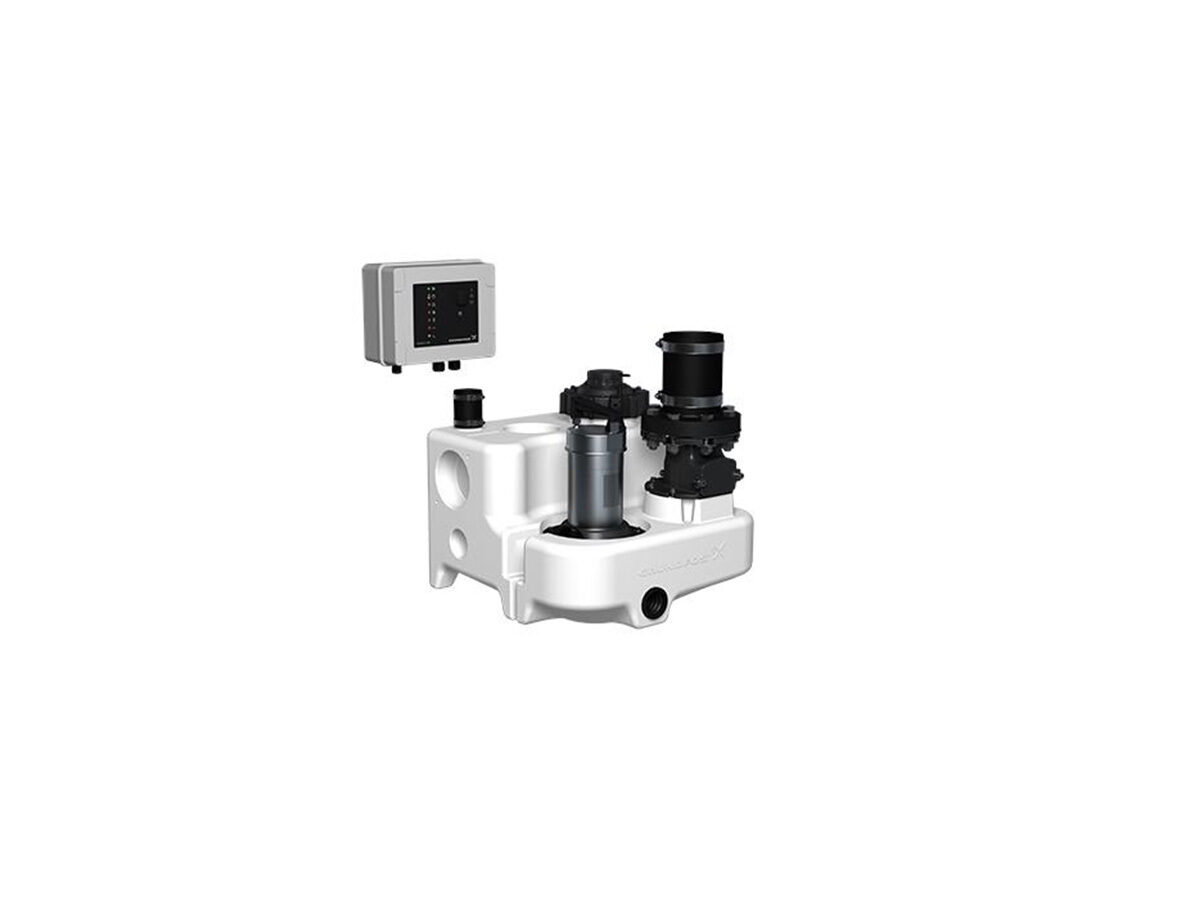

- M/MSS/MOG: One-family houses and installations that do not require a back-up pump.

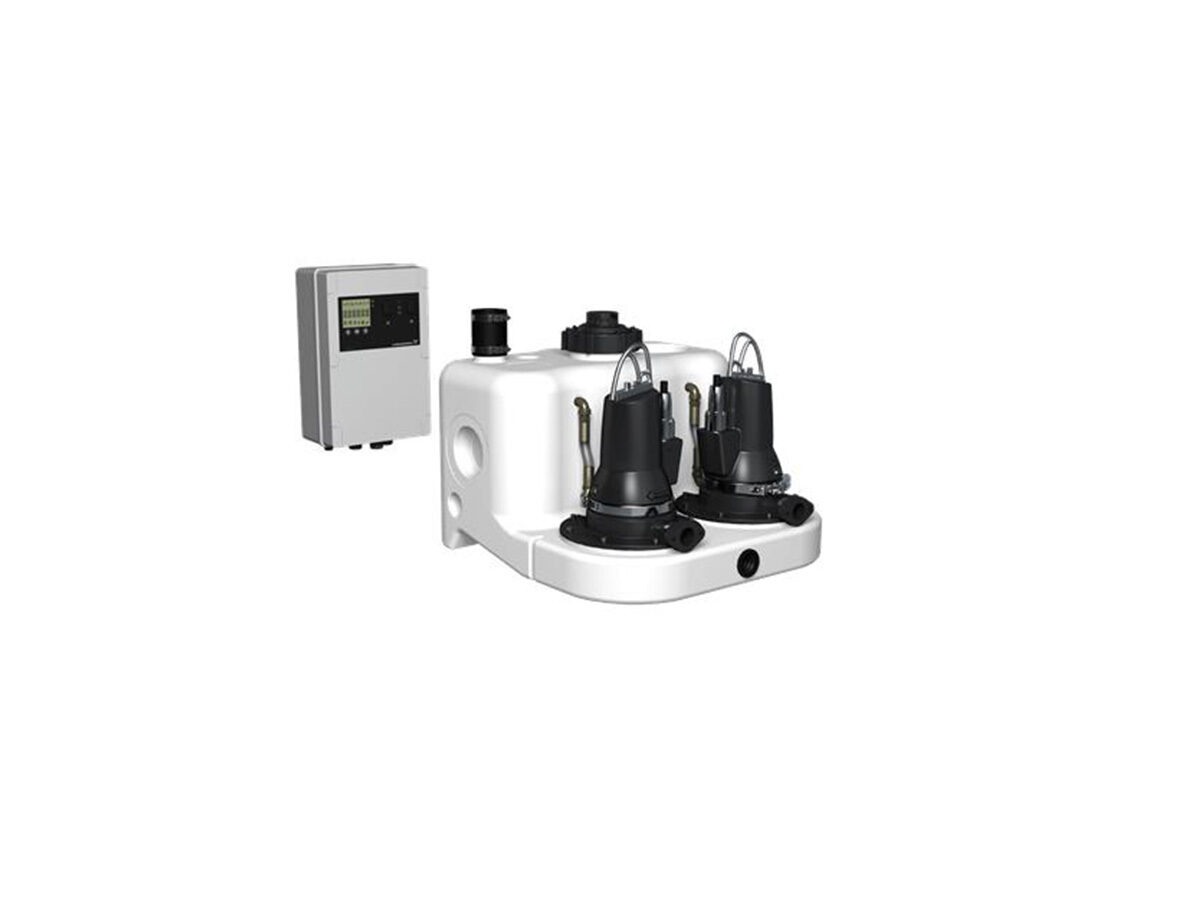

- MD/MDG: Two and multiple family houses, small commercial buildings, offices, schools, restaurants, small hotels, etc.

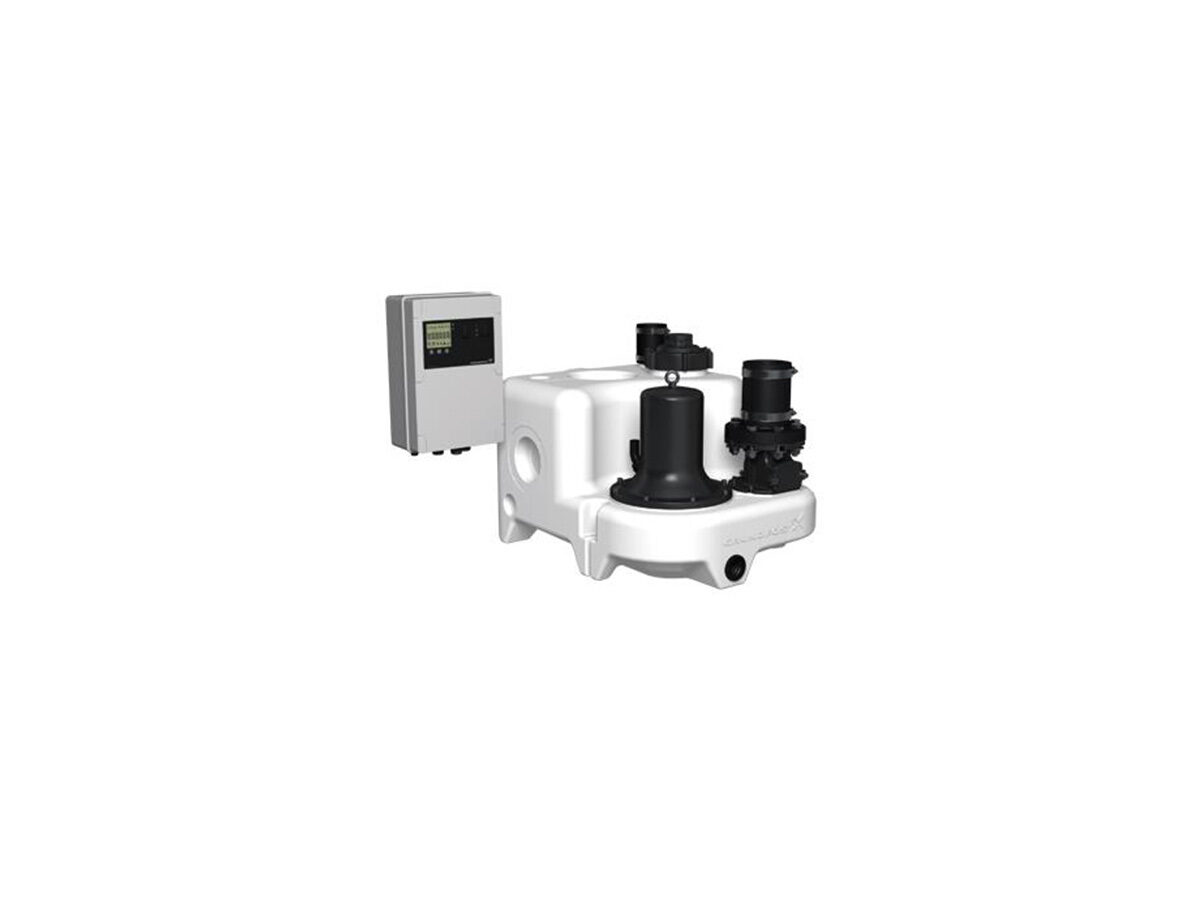

- MLD: Commercial buildings, public areas, offices, schools, hotels, hospitals, restaurants, etc.

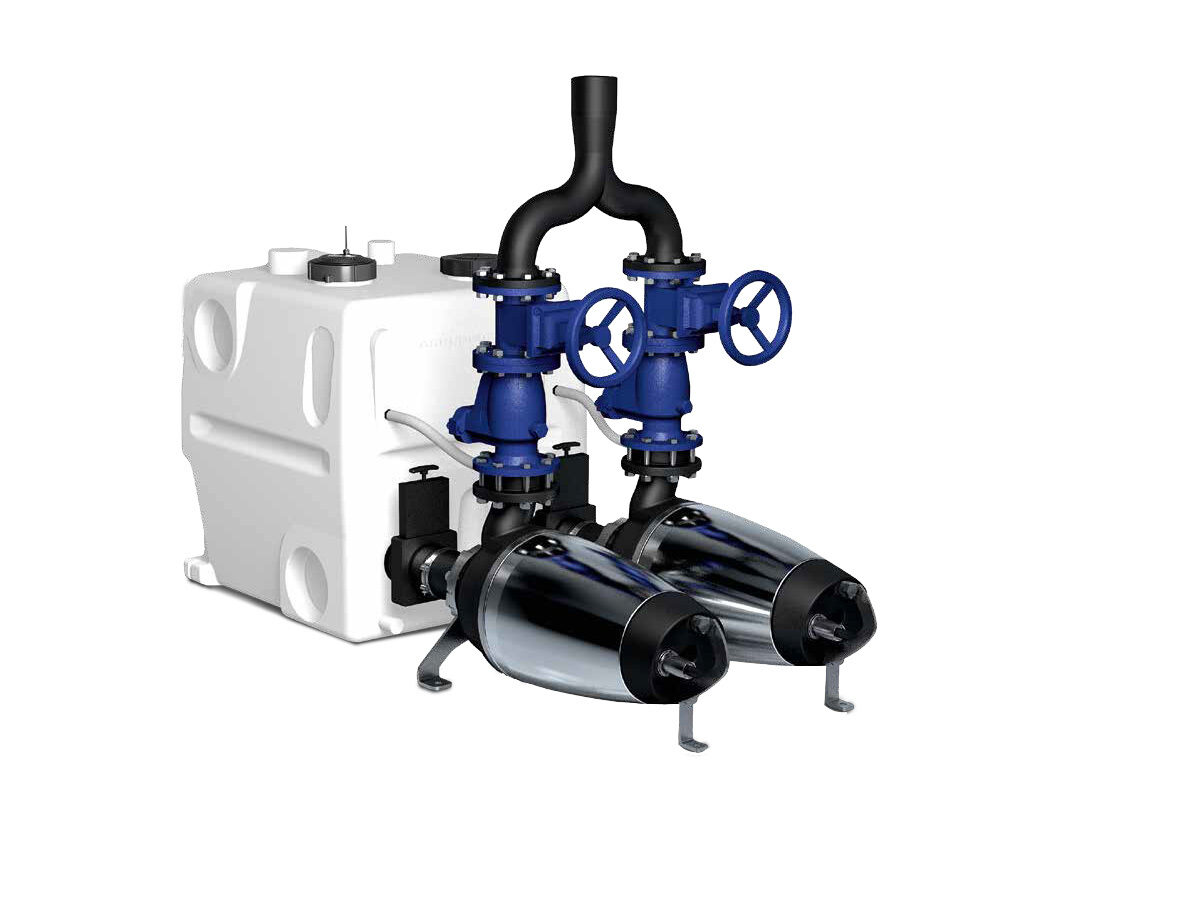

- MD1/V: Multiple-family houses, large public buildings (hospitals, schools, etc), large commercial buildings (shopping centres, etc), government and industrial buildings.
