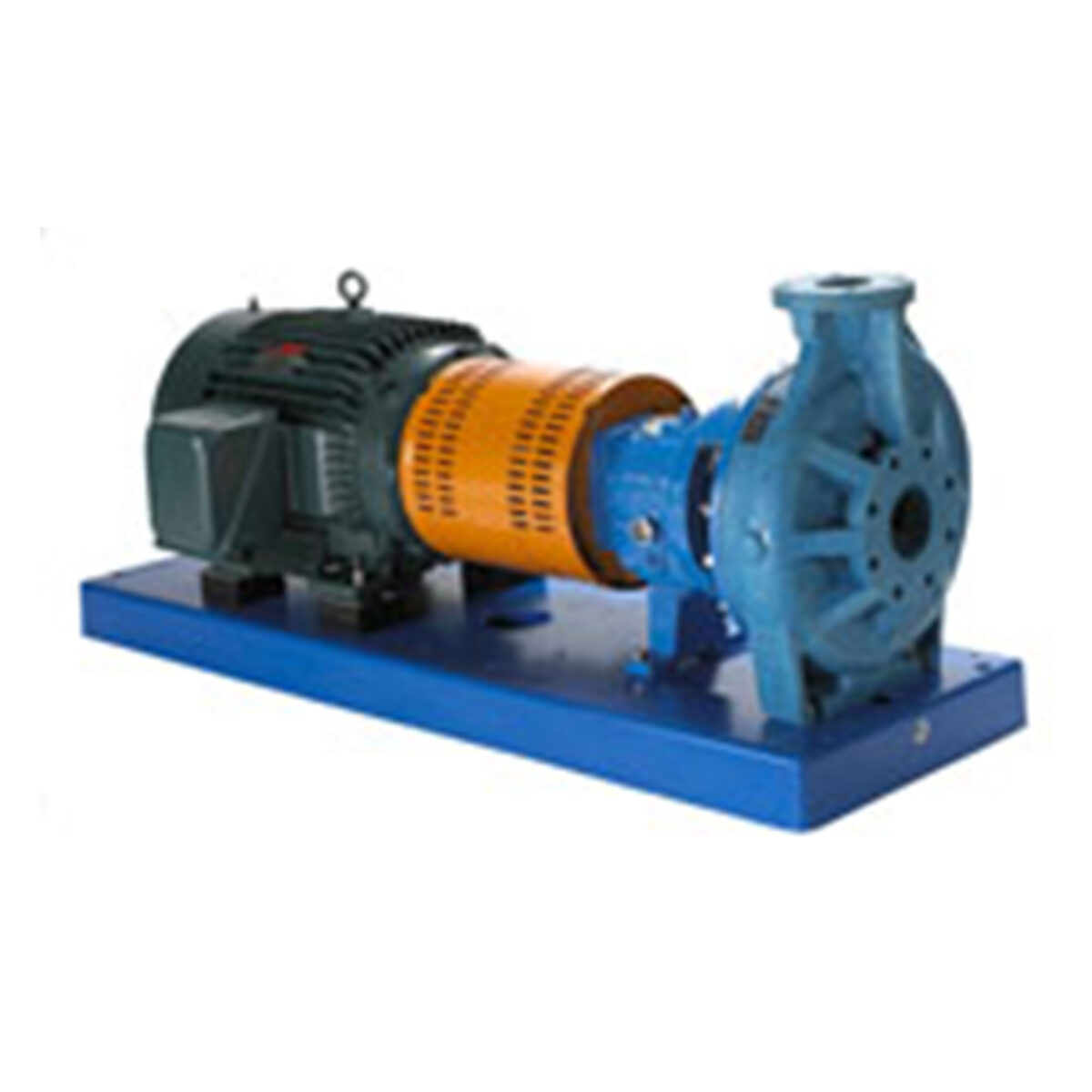

ITT-Goulds : NM3196 FRP ANSI Process Pump

Non-metallic FRP process pump for aggressive acidic and caustic services.

The ITT-Goulds NM3196 is a sealed lined and non-metallic FRP ANSI process pump. Featuring fiberglass reinforced vinyl ester construction for corrosion resistance in a variety of aggressive acidic and caustic services. The NM3196 has random glass orientation and generous ribbing which provides flange load ratings equivalent to a metal pump of the same size.

Specifications:

• Capacities: to 318 m³/h
• Heads: to 152m
• Temperatures: to 93°C
• Pressure: to 15 bar

Applications:

• Hydrochloric Acid Unloading
• Ferric Chloride
• Sulfric Acid Transfer
• Sodium Sulphite
• Sulphate Liquors
• Plating Solutions
• Filter Feed
• Aquarium Water
• Sea Water
• Chlorine Dioxide

Materials:

• Glass reinforced Vinyl Ester
• Other resins available upon request
