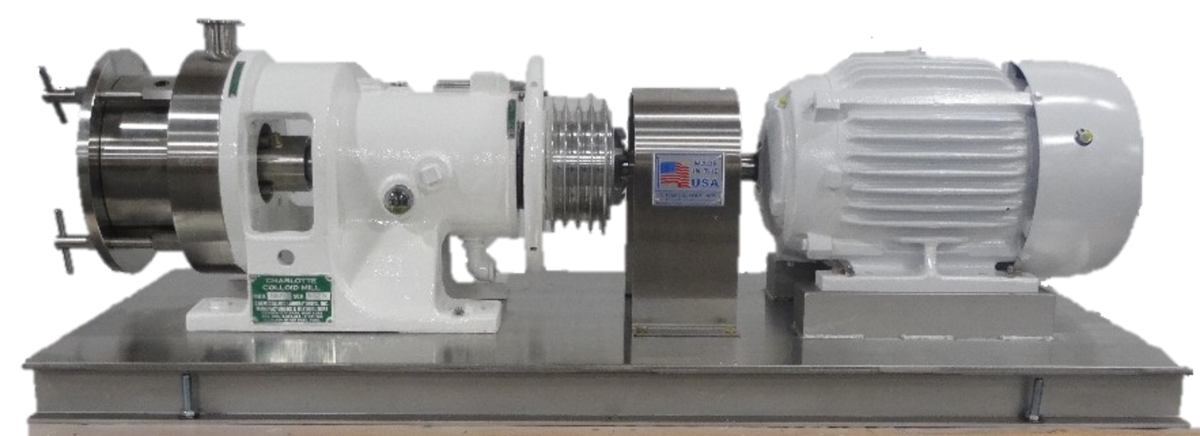

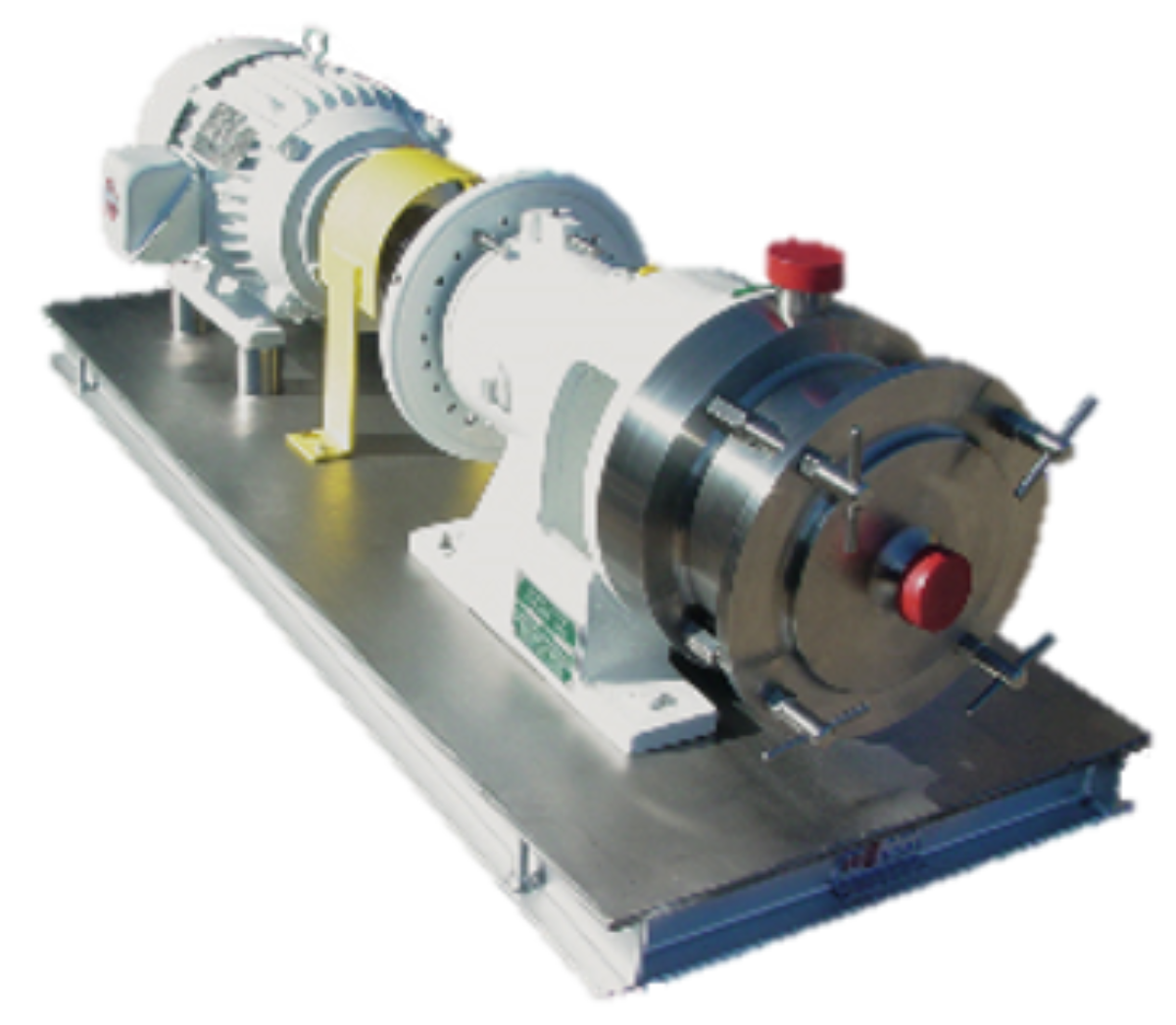

Charlotte Colloid Mills : SD Series

Mills for sanitary production

The Charlotte Mills unique hydraulic shear, along with mechanical shear, and centrifugal action production chamber allows the Charlotte to process the most viscous products. Product processing chambers are fully jacketed for optional heating or cooling. With easy maintenance and a non-aerating production chamber, the Charlotte Colloid Mill may be used for either batch or continuous processing. It can be cleaned in place.

Specifications:

• Power Supply: Three-phase and 50Hz
• Maximum Operating Pressure: 10 bar
• Temperature of Pumped Liquid: Up to 200°C
• Capacity: Up to 78 l/min

Materials:

• 316 Stainless Steel components, see individual pumps for specifications

Market Sectors:

• Industrial

Applications:

Wax Emulsions, i.e., Lipstick, Mascaras, Topical Creams and Lotions, Gels, Hair Care Products, Shampoos, Conditioners, Sunscreens, Ointments, Dispersion's, Fragrances, Toiletries, Toothpastes, Chocolate toppings and coating, buttered syrups, potted meats, pates, peanut butter, flavor emulsions.

Models:

• SD-2, SD-5, SD-20, SD-40, SD-75
