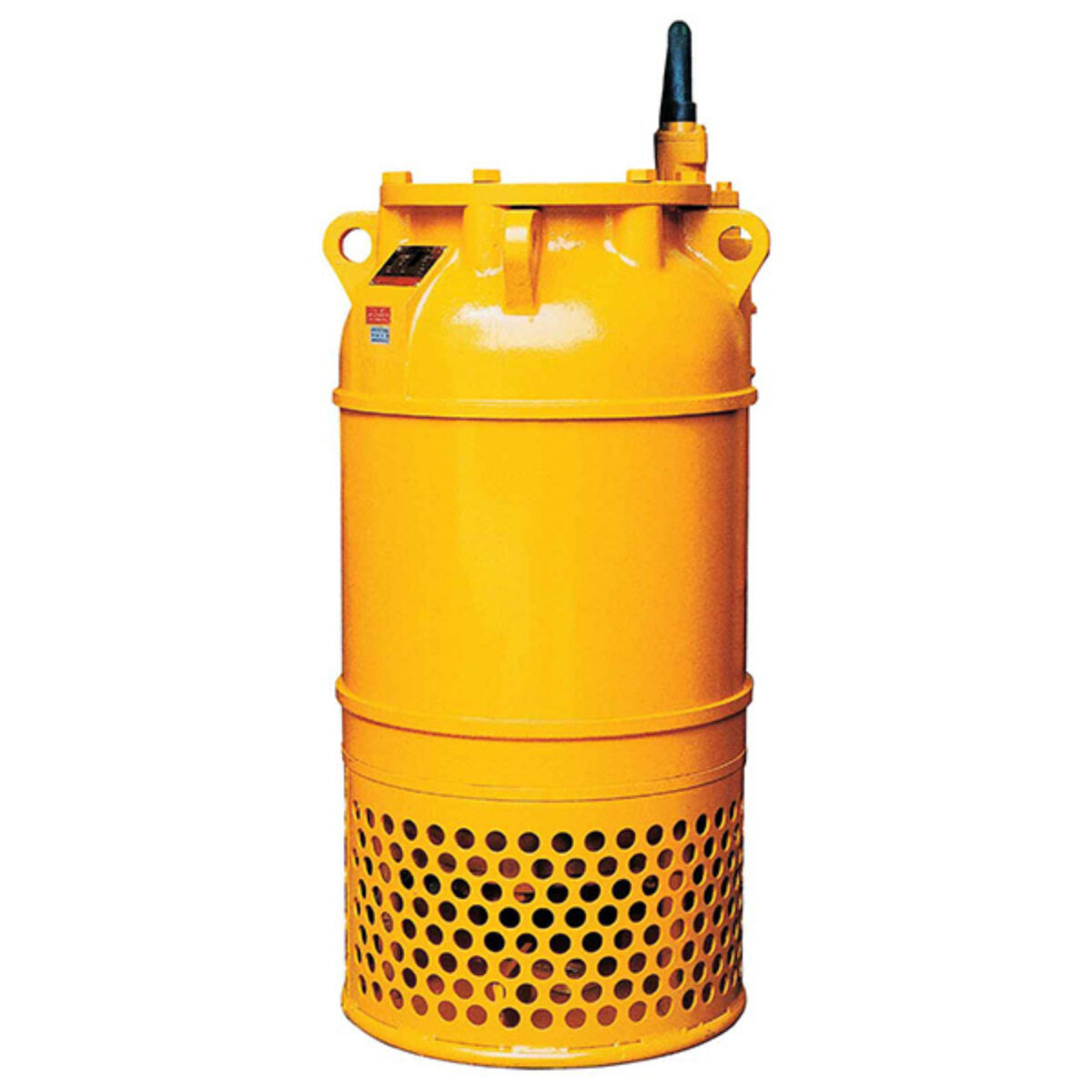

Sakuragawa : U Series - High Head
Submersible pumps with a high head
Super powerful, efficient and dependable! The U Series - High Head pump is the backbone of the Sakuragawa range. These submersible pumps single impeller* pumps carry out dewatering jobs up to incredibly high locations. There are many different models and all incorporate a cantilever design with abrasion resistant materials. These Sakuragawa pumps have superior design and quality over comparable pumps on the market. In some cases, the Sakuragawa units are double the weight of opposition units. Sakuragawa will not sacrifice the quality of their products for price.
(* the U-22006 model has double stage impellers)
Specifications
- Delivery: up to 14m3/min
- Head: up to 230m
- Power supply: three-phase and single-phase 50 and 60 Hz
- Power: 11kW to 185kW
- Discharge Dia.: 100mm to 250mm
- Insulation class: 155 (F)
- Protection: IP55
Applications
- Drainage out of sumps, pits, quarries, minings, cellars
- Tunnels, caisson dewatering, reclaiming operations, power station constructions
- Waste, storm or emergency water removal, dams, harbour projects
- Contractor and rental companies
Materials
- Impeller: High chrome iron
- Casin: FC250 spheroidal graphite iron
- Suction mouth: FC250 spheroidal graphite iron
- Casing cover: FC250 spheroidal cast iron
