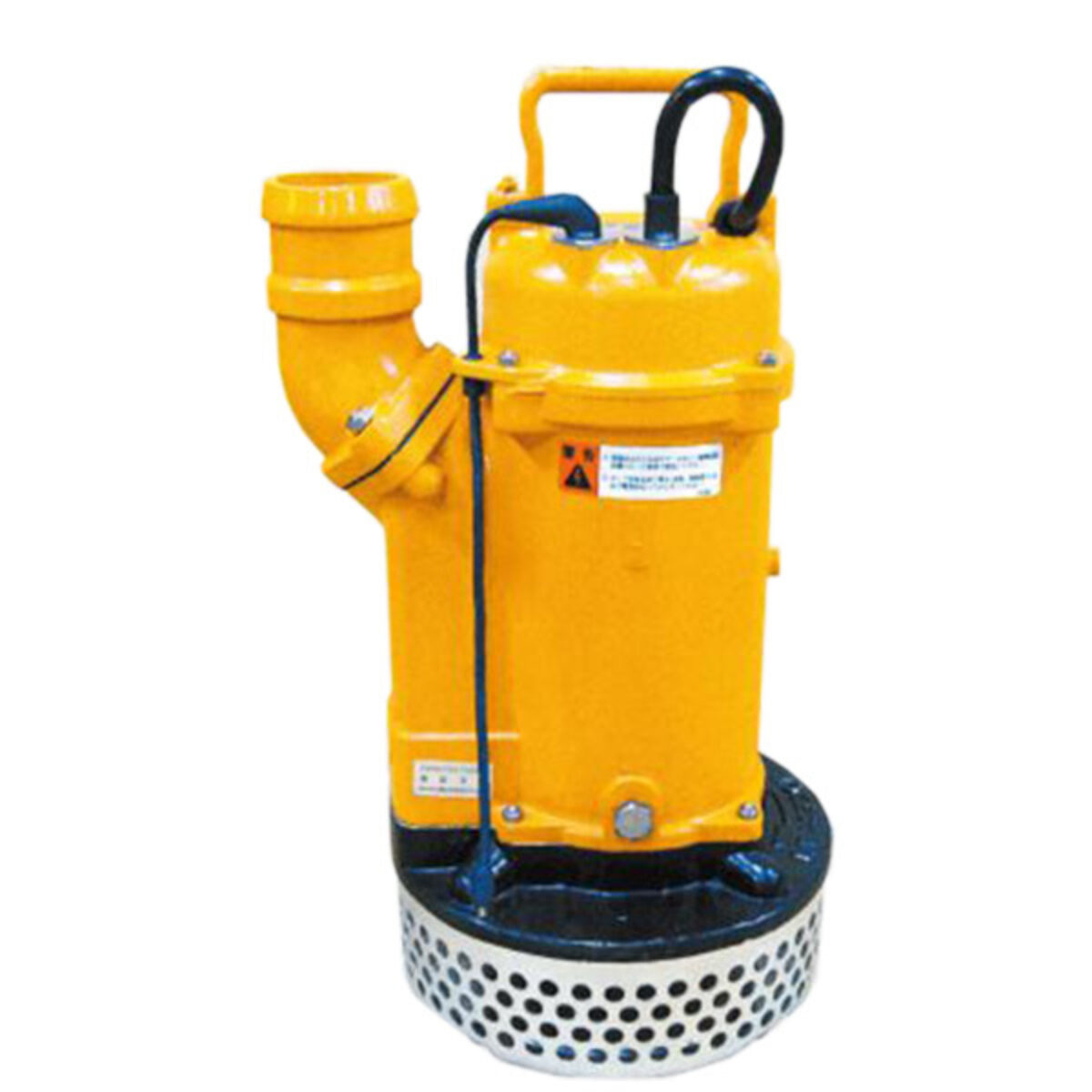

Sakuragawa : UEX Series
Highly accurate IT pump
The Sakuragawa UEX Series is a highly accurate IT pump. Featuring a capacitance mode sensor for easy control of changing water levels. Rubber lined plats and low chrome impellers are featured as standard.
Specifications
- Delivery: up to 0.8 m3/min
- Head: up to 28 m
- Power supply: three-phase and single-phase 50 and 60 Hz
- Power: 0.4 kW to 3.7 kW
- Insulation class: 155 (F)
- Protection: IP55
- Open impeller pumps solids: semi open
- Liquids with suspended solids:
- Length of cable: single phase 6m, three phase 10m
Applications
- Drainage out of underground pit, manholes etc
- Supply and dewatering works from agricultural field, factory etc
- Drainage out of spring water, stagnant water from swamp, pit etc
Materials
- Motor and casing: Aluminium and cast iron
- Impellers: Low chrome
- Wear plates: Rubber lined
- External shafts and bolts: Stainless steel
Models
- UEX
- UEXF
