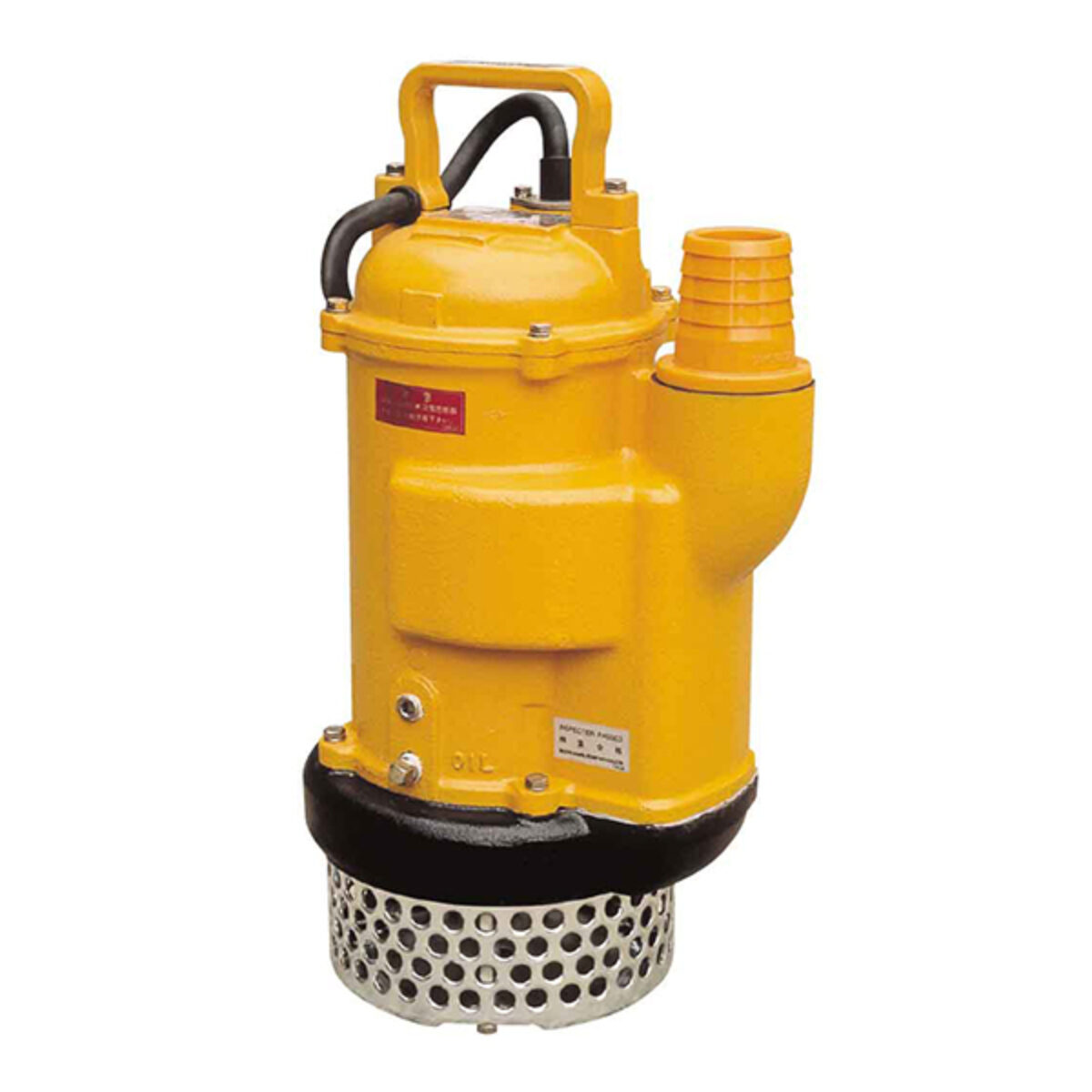

Sakuragawa : UK Series

Heavy duty submersible dewatering pump

The Sakuragawa UK Series is extra compact, high performance and easy to operate. It has been designed to reduce the risk of clogging and locking of the impeller. The number of parts is minimized and the simplicity in its design increases the common components parts, which will decrease the cost of maintenance. This UK Series is particularly good for difficult dewatering applications. All units are cast iron construction with chrome impellers and rubber lined wear plates. Very good for low head high capacity fixed installations. Fitted with hose tail outlets.

Specifications

• Delivery: up to 8m3/min
• Head: up to 29m
• Power supply: three-phase and single-phase 50 and 60 Hz
• Power: 0.4kW to 22kW
• Discharge Dia.: 50mm to 200mm
• Length of cable: 6m to10m (depending on model)

Applications

• Tunnel and caisson dewatering
• Agricultural irrigation
• Reclaiming operations, tight trenches, manholes
• Contractors and rental companies

Materials

• Body: cast iron
• Impellers: low chrome with rubber lined wear plates
