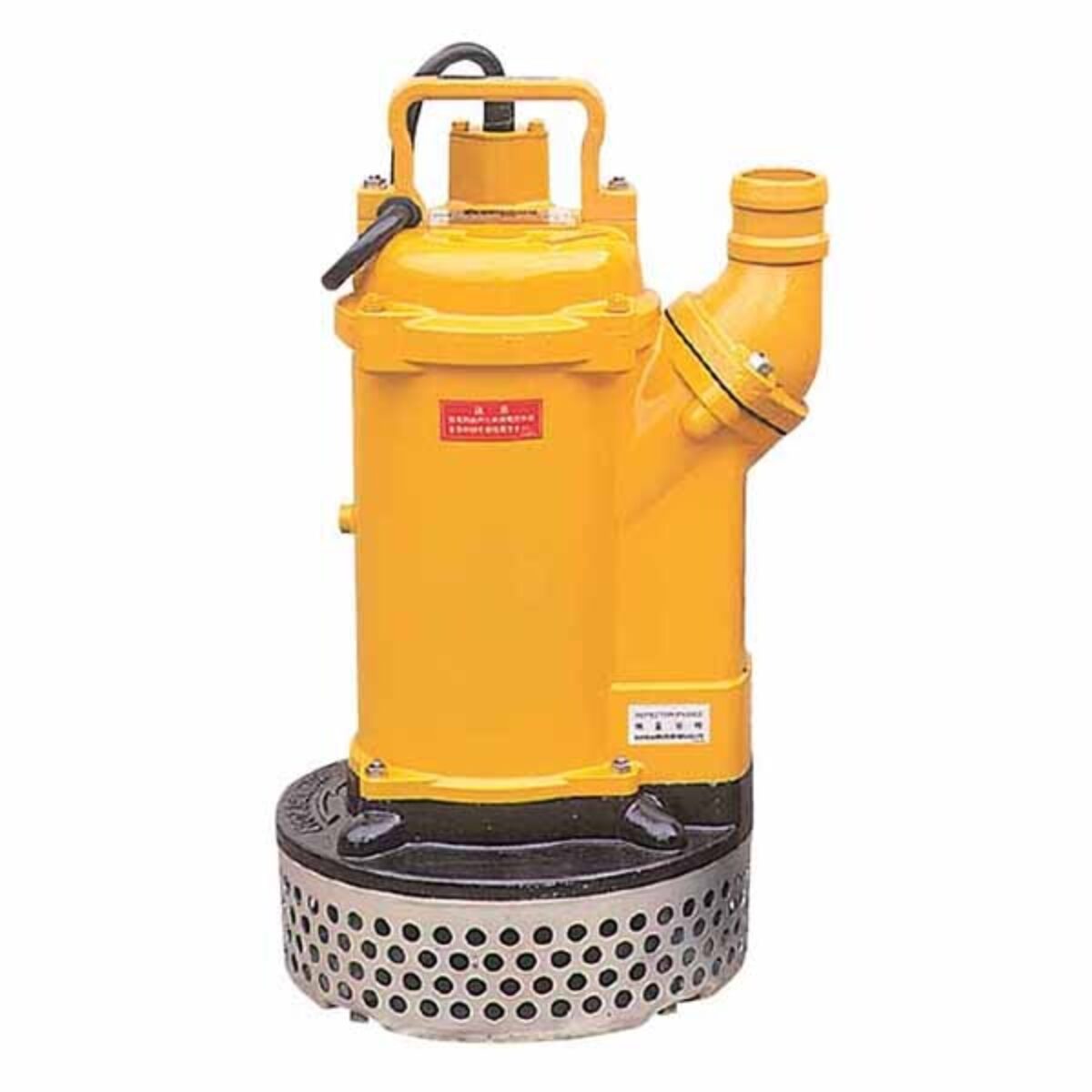

Sakuragawa : US Series
Vortex type pump designed to reduce clogging
The Sakuragawa US Series pump is vortex type pump that has been specifically designed to reduce clogging. The liquid is pumped by a vortex action generated by a multi-radial vane impeller.
Specifications
- Delivery: up to 0.85 m3/min
- Head: up to 28 m
- Power supply: three-phase and single-phase 50 and 60 Hz
- Power: 0.4 kW to 3.7 kW
- Discharge Dia: 50mm to 100mm
- Length of cable: single phase 6m; three phase 10m
Applications
- Removal of water/slurry out or trenches, underground pits, manholes, building basements, puddles etc
- Water transportation, filtration, silt removal, sump application
- Irrigation, silt removal
Materials
- Power cable: heavy duty cabtyre cable
- Shaft seal: double-faced silicon carbide (Sic) mechanical seals
- Casing and suction cover: light weight rubber-lined steel plates
- Pump handle: light-weight alloy metal
- Impeller: semi vortex low chrome with rubber lined wear plates
Models
- US - basic version
- USO - automatic operation at required water level
- US-A - Equipped with a mechanical agitator to create powerful stirring and pumping action for slurry
