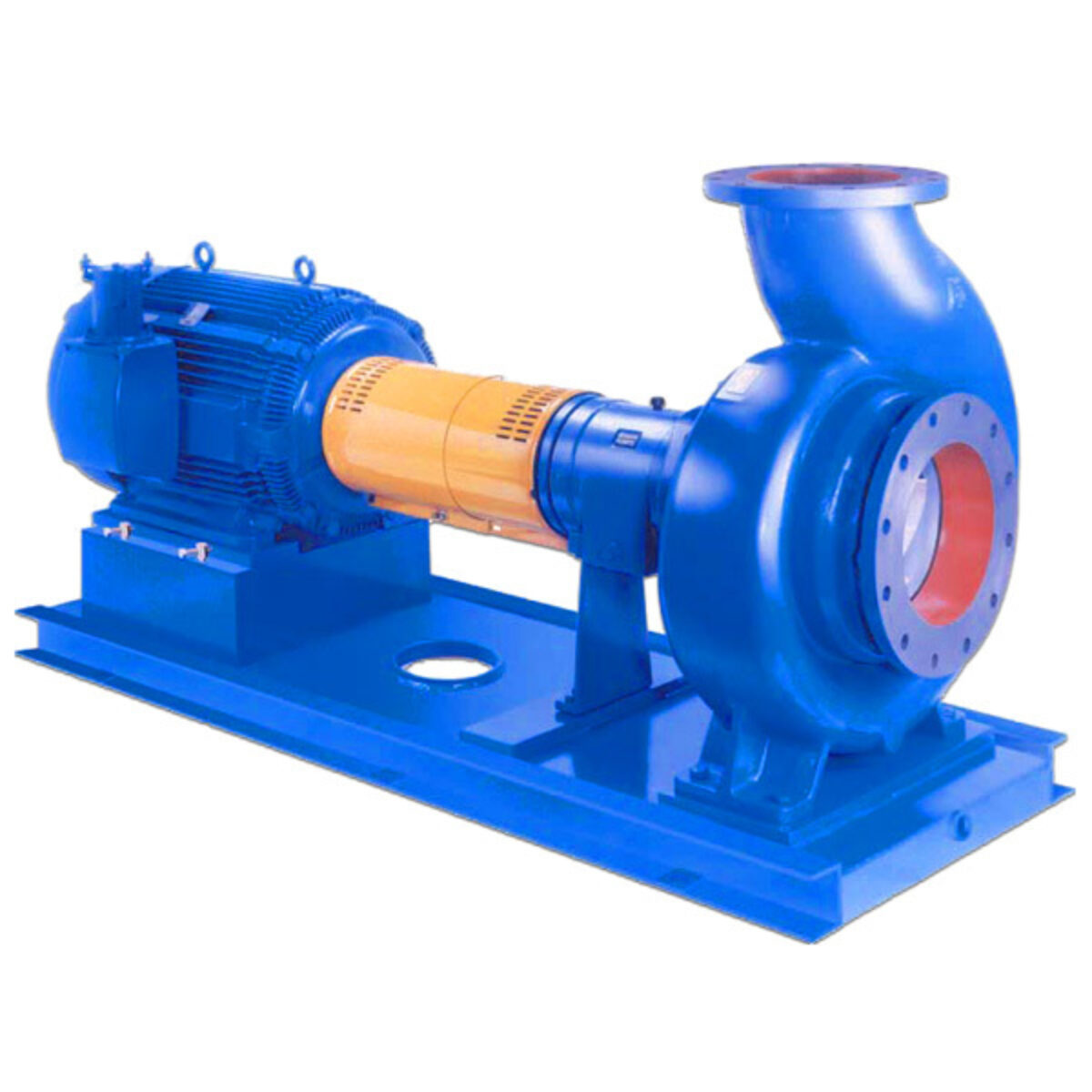

ITT-Goulds : 3180 Centrifugal Process Pump
Heavy Duty Paper Stock / Process Pump
All customer requirements were considered in the design of the 3180 paper stock / process pump.
Advantages
- Excellent Hydraulic Coverage
- High Efficiency
- Extreme Ease of Maintenance
- Optimum Mechanical Reliability
- International Design
- Features i-Alert conditions monitoring as standard
Specifications
- Capacities: From 3000m3/h to 9000 m3/h
- Heads to 125 m
- Temperatures: From 230°C to 300°C
- Pressures: From 16 bar to 25 bar
*refer to individual model specifications
Design Features
- Hydraulic Coverage: Line designed for full 50/60 Hz coverage.
- External Impeller Adjustment: Original high performance maintained by simple axial adjustment resulting in low operating costs, reduced downtime.
- Sealing Flexibility: Choice of packing, mechanical seals or dynamic seal.
- Application Flexibility: Choice of open or enclosed impeller.
- Back Pull-out Construction: Spacer-type coupling allows one craft maintenance.
- Renewable Wear Parts: Low maintenance costs.
- Labyrinth Seals: Eliminate lubricant contamination for maximum bearing life.
- Maximum Parts Interchangeability: Entire line uses just four power ends.
World Class Pump Line
- ANSI 125/150 lb. flange drilling
- Inch-dimensioned O.D. of mechanical seal sleeve
- Inch-dimensioned bearing locknut
- Inch-dimensioned coupling extension
Applications
- Paper Stock
- Black Liquor
- White Liquor
- Make-up Liquor
- Digester Recirculation
- Chemical Process
- Wastewater
- High Pressure / High Temperature Pulp Mill Services
- Hot Oil
Models
- 3180 standard with ANSI flanges
- 3181 (High Temperature) standard with ANSI flanges
- 3185 with ISO or JIS flanges
- 3186 (High Temperature) with ISO or JIS flanges
