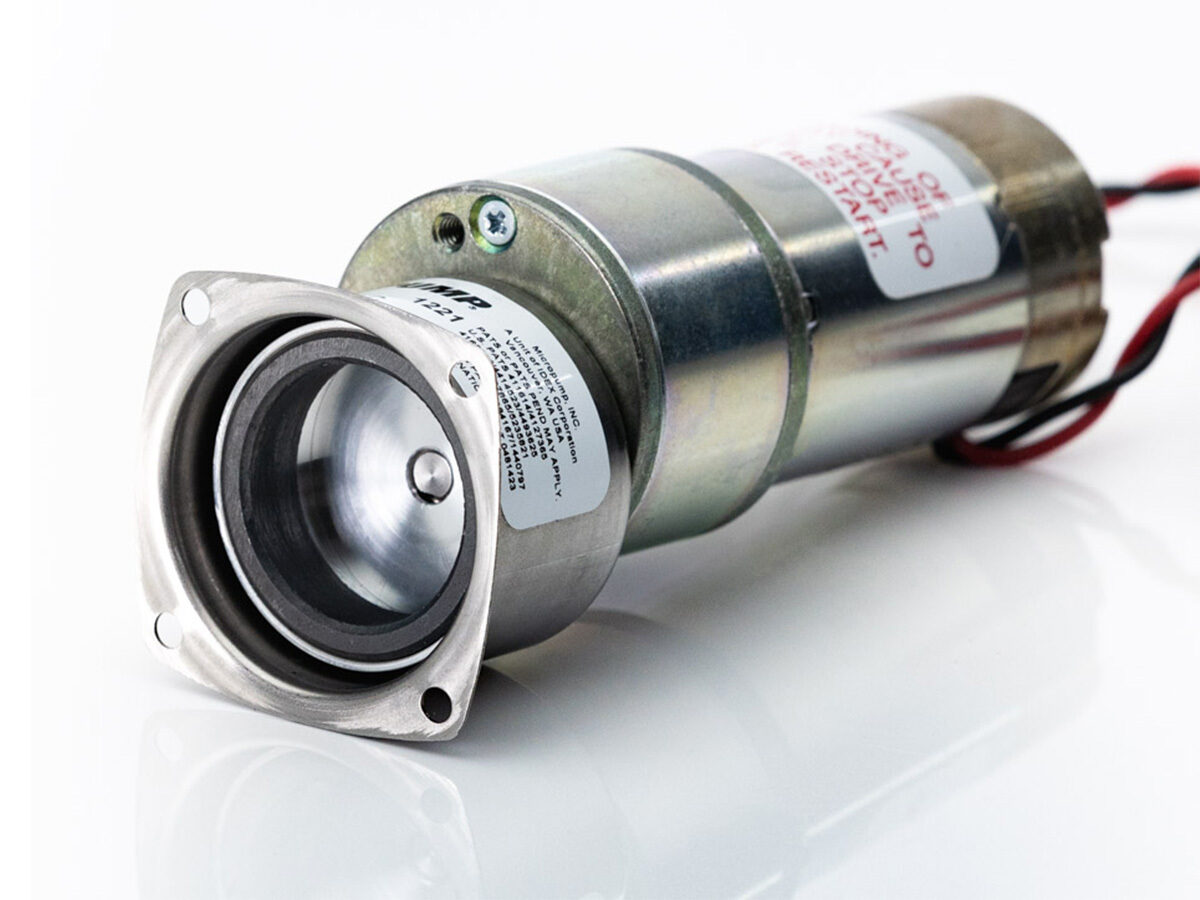

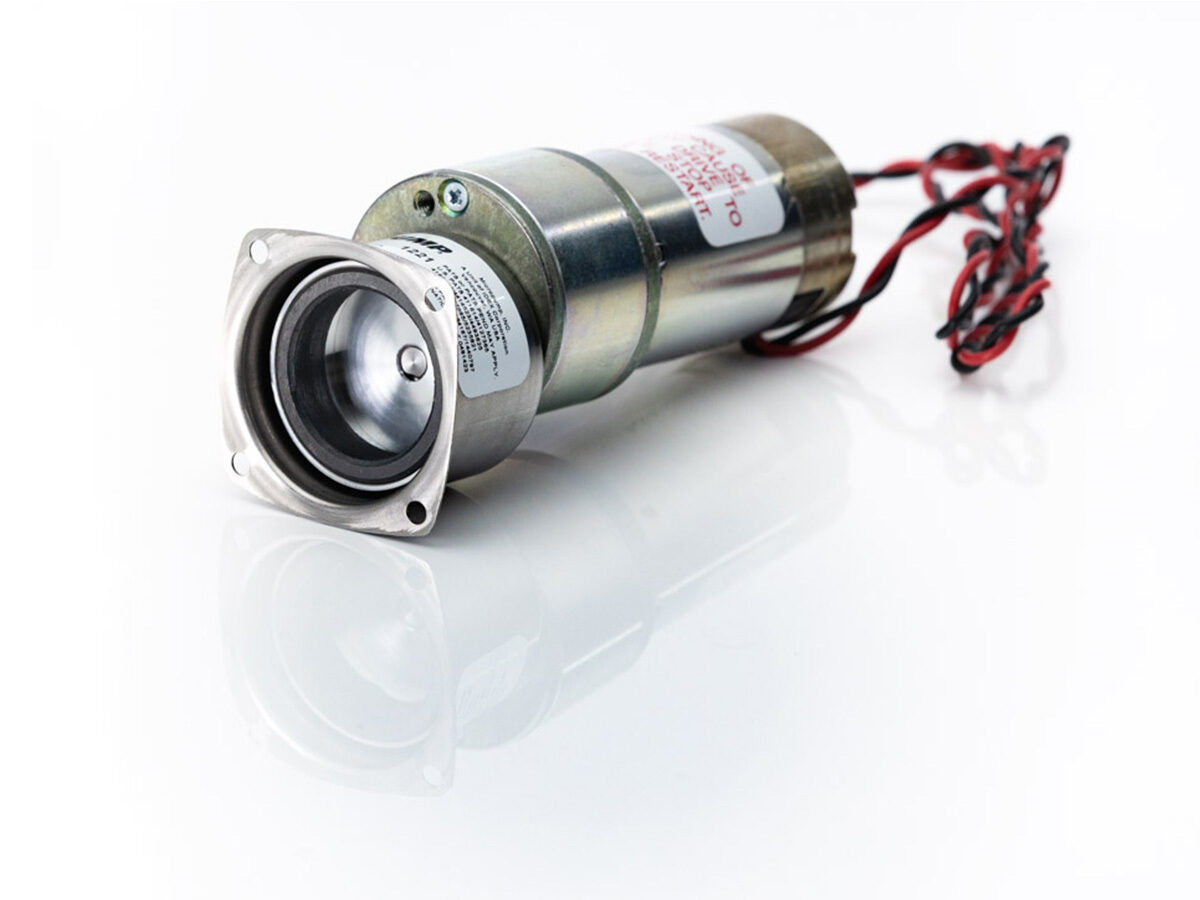

Micropump : DC-361.C Drive

DC Drive

The DC-361.C is an intermittent duty, 0-24VDC, Brush Type, 19:1 Gear Reduction Drive for the GA series pumps.

Technical Data

Drive type: Brush
Weight: 0.23 kg
Power (max): 37 W
Torque (max): 127.11 mNm
Power Source: 24 VDC
Mount: C-Mount
Speed Control: Input voltage
Connection: Spade terminals
Enclosure: TENV
Recommended speed range: 100-500 RPM

Similar Products

Micropump GA Series

Micropump GA Series

Performance Data

Maximum flow rate (at 5500 RPM): 506 mL/min
Differential pressure (max): 5.2 Bar (75 psi)
System pressure (max): 21 Bar (300 psi)

Applications

Analytical equipment
Fuel cell technology
Diesel engine emissions control
