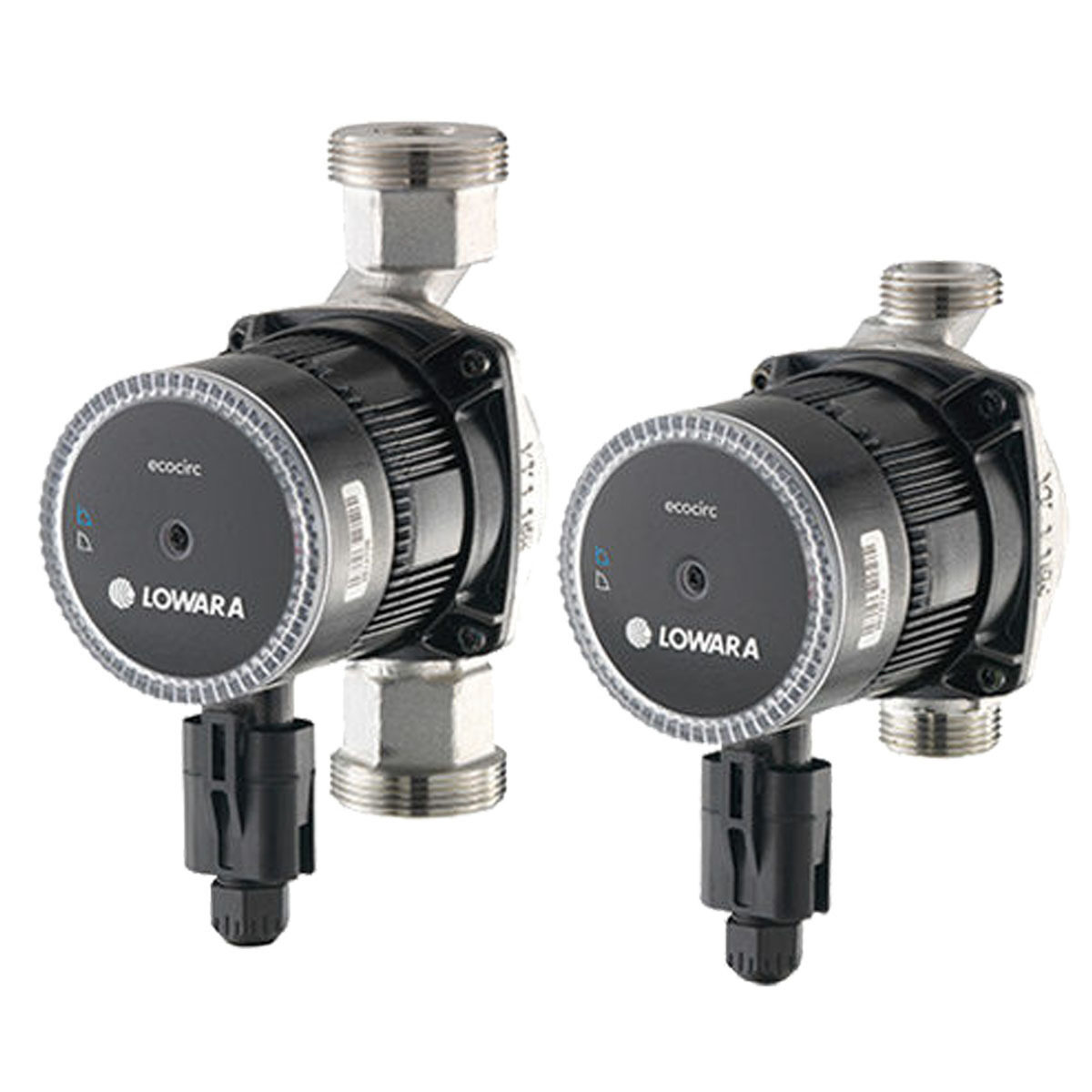

Lowara : Ecocirc Basic Circulator

High efficiency single wet rotor circulators

The Ecocirc Basic is a high efficiency circulator. The latest generation, the Ecocirc Basic is based on the shaft-less spherical motor design - with ECM technology and permanent magnets. With improved efficiency and fulfilling the requirements of ErP 2015, this series features high magnetite resistance thanks to new Anti-Block technology.

Specifications

• Delivery: up to 3.20 m³/h
• Head: up to 6 m
• Power supply: both single and three-phase 50 Hz
• Power: 23 and 42 watts
• Maximum operating pressure: 10 bar
• Temperature of pumped liquid: from -10 °C to 110 °C

Materials

• Cast Iron
• "N" model available in AISI 304 Stainless Steel

Models

• Basic and Basic N
