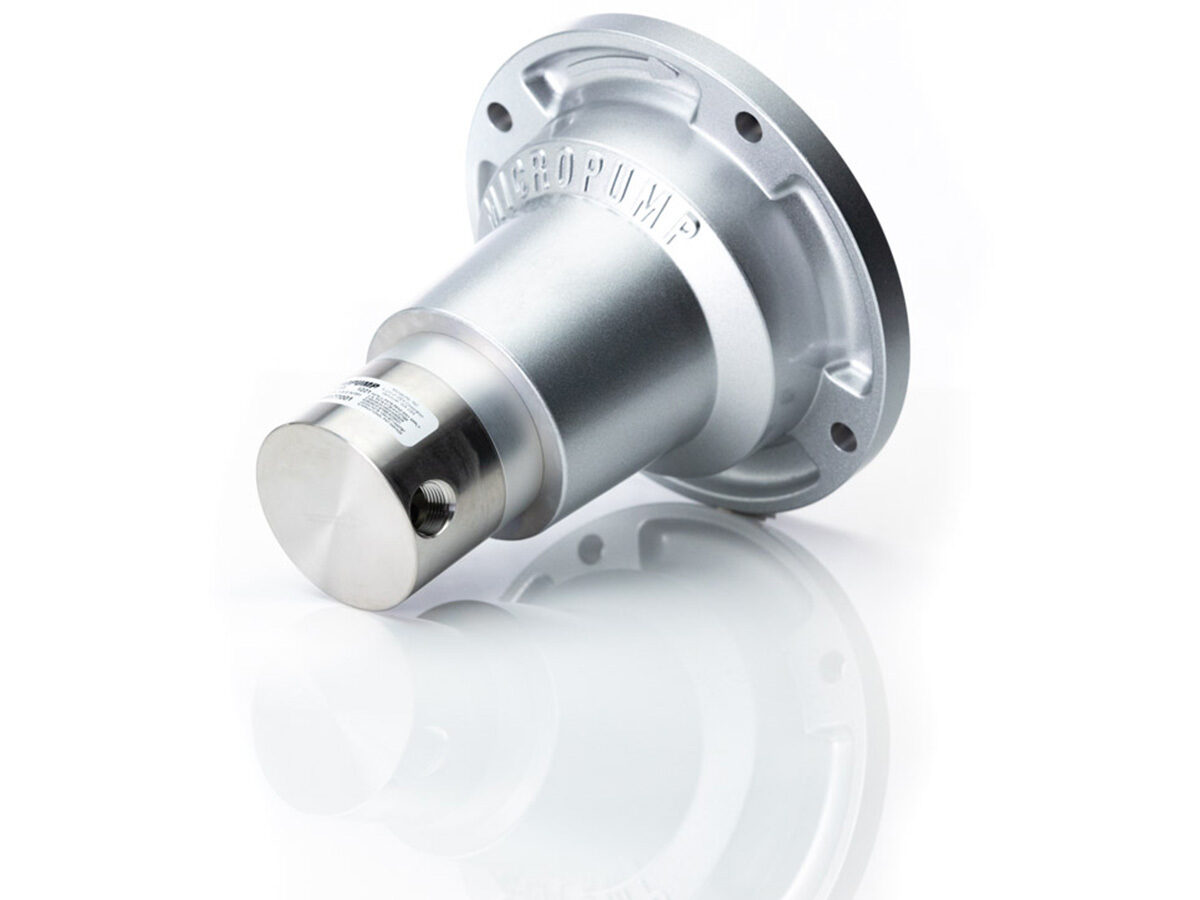

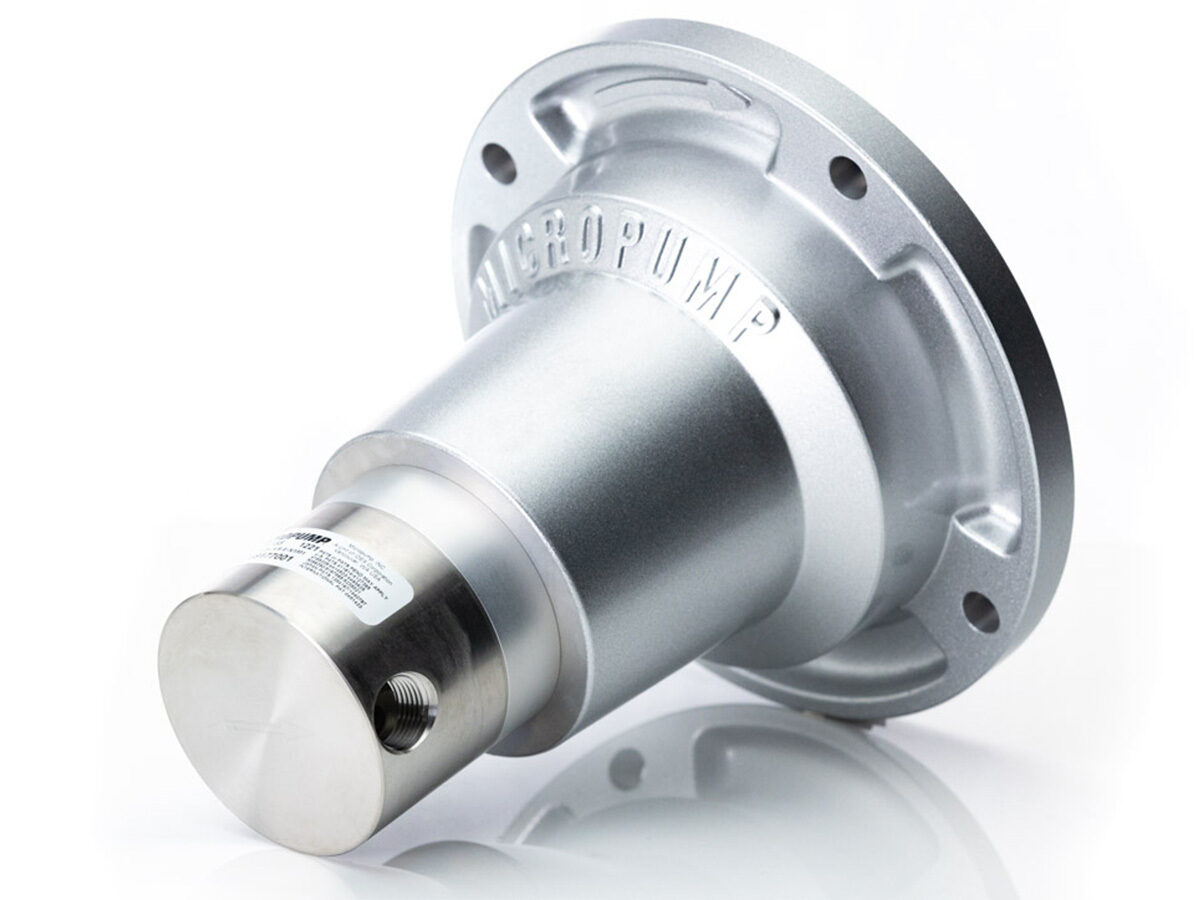

Micropump : GC Series

Magnetic Drive Gear Pump

The GC Series suction-shoe style, magnetic drive gear pumps provide high performance, pulseless delivery in a convenient, compact unit. The GC Series can withstand system pressures to 103 Bar (1500 psi) and offer the highest fluid displacement of suction shoe gear pumps.

The GC Series pumps are a perfect fit for demanding applications with a wide range of available options, materials, and configurations.

Product Features

• Small Size
• Smooth, Pulseless Delivery
• Chemically Resistant
• Easy to Service
• Proven Reliability
• Advanced Pump Technology
• Wide Range of Options
• OEM Configurations
• High-System Pressure Capability
• Enhanced Efficiency

Technical Data

• Displacement:
  • 0.81 ml/rev (M23 gear set)
  • 1.82 ml/rev (M25 gear set)
  • 3.48 ml/rev (M35 gear set)
• Maximum flow rate (at 4000 RPM): 13.9 L/min
• Differential pressure (max): 8.6 Bar (125 psi)
• System pressure (max): 103 Bar (1500 psi)
• Temperature range: -46⁰C to 177⁰C
• Viscosity range: 0.5 to 1500 cps
• Recommended speed range: 500-4000 RPM

Applications

• The GC Series pumps are a perfect fit for demanding applications with a wide range of available options, materials, and configurations.

Pump Construction

• Magnetic drive gear pump
• Suction shoe style
• Two or three helical gears
• Stationary shafts
• O-ring seal
