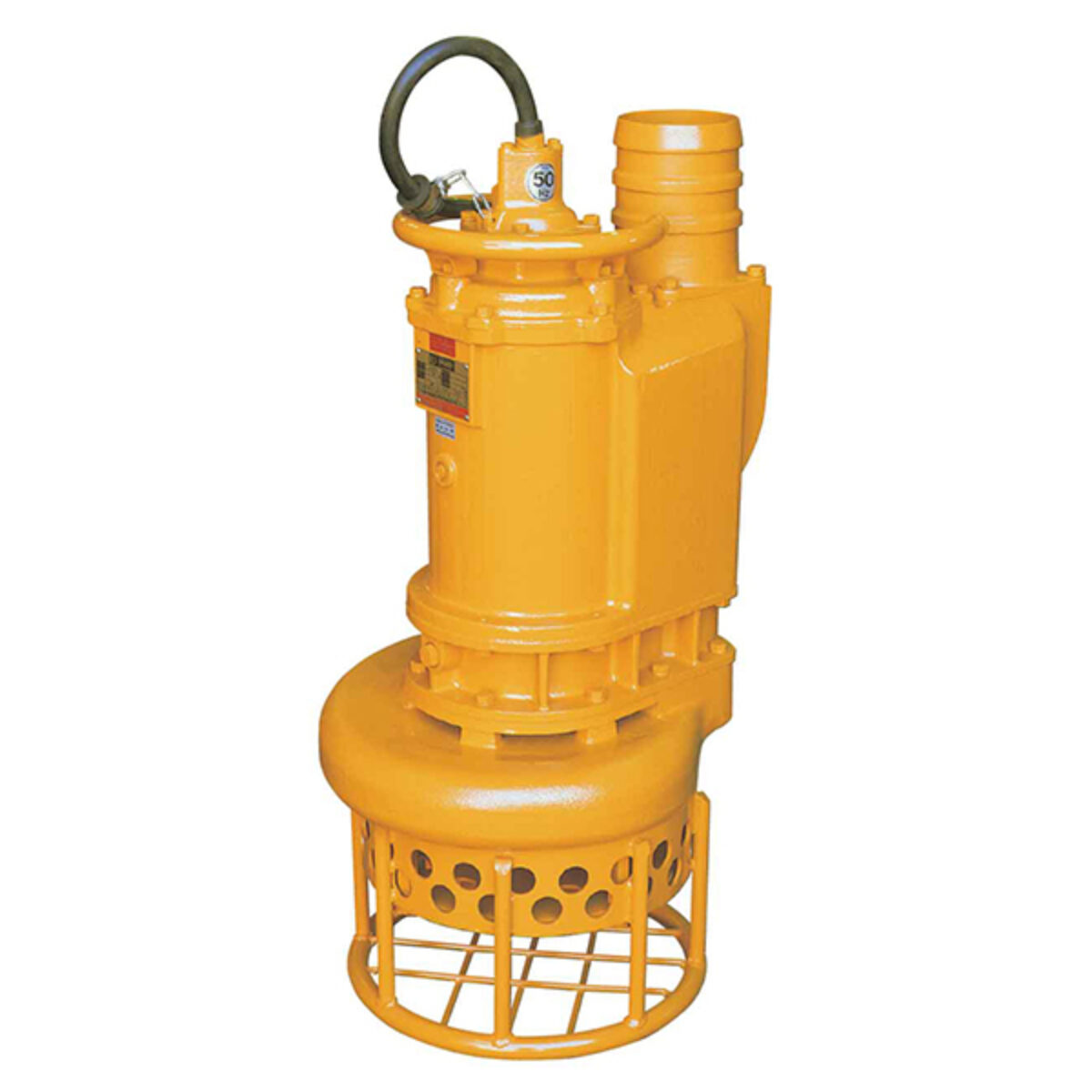

Sakuragawa : HS Series
Submersible sludge pumps
The Sakuragawa HS Series submersible sludge pump with agitator is designed for demanding conditions. Suitable for dredging and transporting sand, ballast, gravel, sludge or slurry contained in water in demanding conditions such as dams, power stations, harbour projects or tunneling works etc.
Fitted with an agitator, these models are designed to stir up mud and sand at the bottom and then discharge the water, mud and sand in suspension more effectively
Specifications
- Head: up to 38 m
- Capacity: up to 7m3/min
- Motor: 3.7kW to 22kW
- Solids Max. Diameter: 40mm
- Speed: 1500rpm
- Insulation: Class B
Applications
- Dredging and transporting sand, ballast, gravel, sludge and slurry contained in water
- For heavy duty applications such as in dams, power stations, harbour projects or tunneling works
Materials
- Impeller: High chrome iron
- Casing: FC250 cast iron
- Suction cover: F200 cast iron
- Suction cover liner: stainless steel 400
- Agitator: high chrome iron
