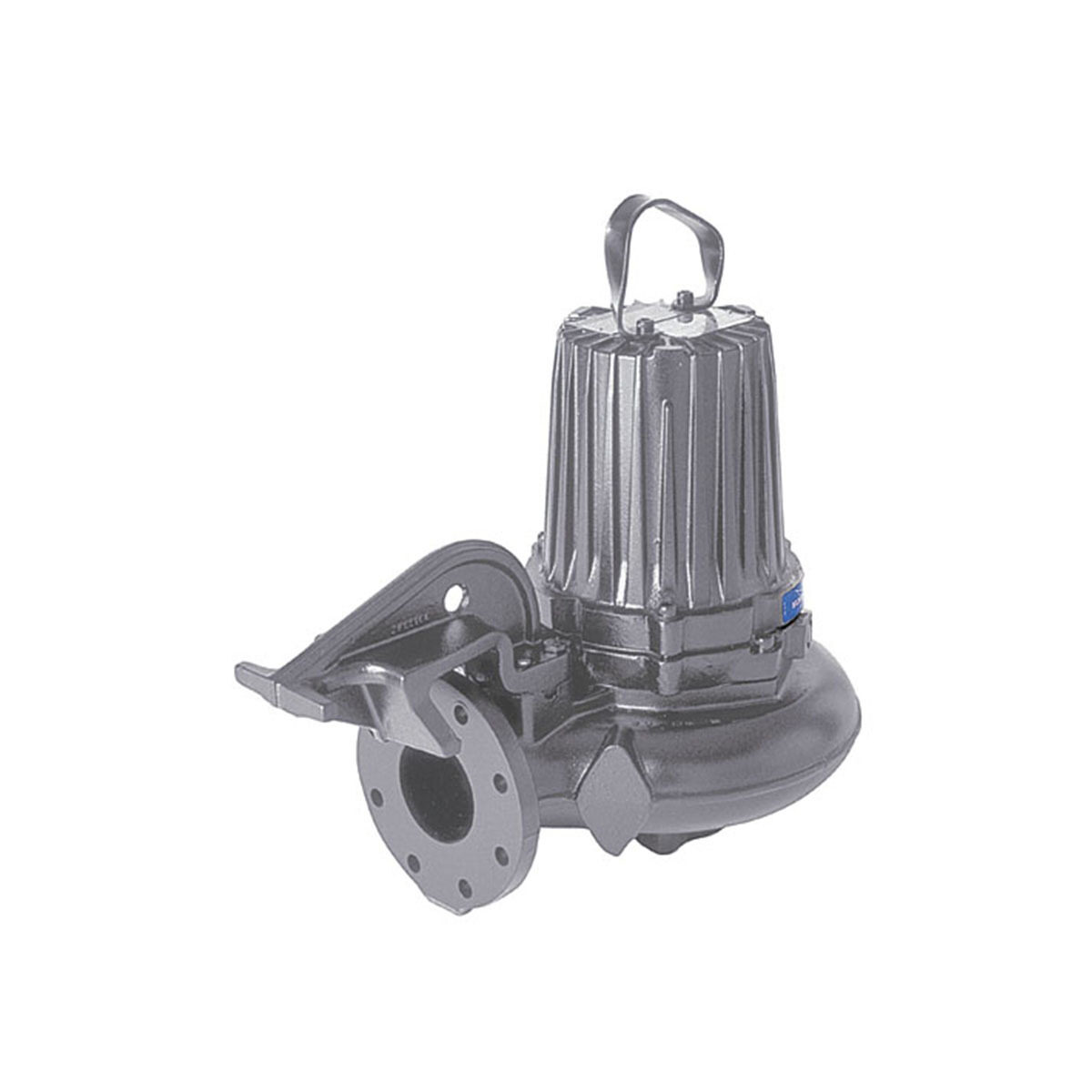

Flygt : N Series

Wastewater N-Technology pump

The Flygt N-pumps are wastewater pumps with adaptive N-Technology, they take on the toughest applications and get the job done. Highly efficient with patented N-technology that features an innovative self-cleaning impeller. The N Series lowers your energy bill and reduces unplanned maintenance costs.

Most solid objects entering the pump will pass through the impeller between the impeller vanes. If an object gets caught on the leading edge of one of the vanes, it will slide along the backswept shape towards the perimeter of the inlet.

Due to the mechanical self-cleaning design, a sludge concentration up to 8% can easily be pumped.

Key Features:

• Backswept leading edges ensure no material sticks to the impeller.
• Integrated guide pin keeps the center clear and pushes solids to the leading edges.
• Relief groove helps facilitate transport of solids out of the pump

Specifications

• Outlet: 80mm to 150mm
• Motor Class Efficiency: IE3
• Power: 2kW to 8.5kW with 3 Phase
• Frequency: 50Hz

Applications

• Wastewater
• Stormwater
• Desalination
• Reuse
• Sewage
• Treatment Plant

Models

• N Series - N3085, N3102, N3127
