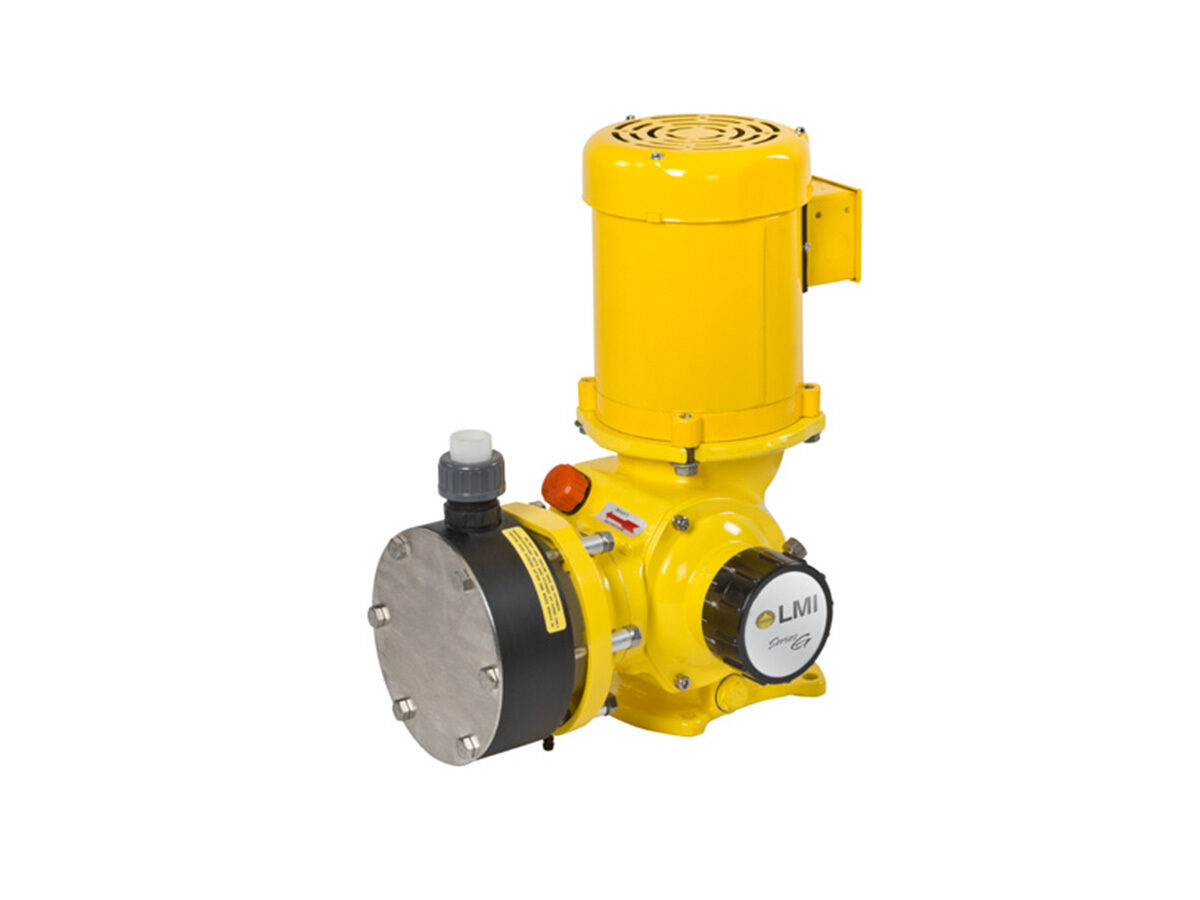

LMI Pumps : Series G Metering Pump
A rugged design for the toughest challenge
Featuring a rugged aluminium construction, the Series G Metering Pumps are specifically engineered to handle higher output applications in harsh environments. Certified with NSF / ANSI 61 and 372 for municipal compliance and safety assurance, the Series G is the right choice when choosing a pump for water treatment applications, like coagulation and flocculation.
With a state-of-the-art design and a heavy-duty industrial drive, the Series G offers a mechanically actuated diaphragm that provides smooth output with reduced potential for system shock and hydraulic oil contamination.
- Available in three frame sizes, the Series G pumps are able to accommodate a wide selection of liquid ends
- Manual controls allow for precise stroke length adjustment
- Mechanically actuated diaphragm liquid end eliminates flow restrictions
- Durable, metallic housing designed to withstand tough environments
- High efficiency motors minimize heat build-up
- Reliable low flow performance is a result of high performance check valves with machined seats
- Precision stroke adjustment can be operated while the pump is running or stopped
- Steady state accuracy – ± 1% of full capacity over the 10 to 1 turndown ratio
- Liquid Temperature Range – 14° to 122° F (-14° to 50° C)
- Coating includes a 2-part epoxy
Technical Data
- Capacity: To 1136 LPH
- Pressure: To 12 Bar
Applications
- Water Treatment
- Waste Water Treatment
- Industrial Processing
- General Industry
- Agricultural
- Chemical Processing
Models
- Available in two motor driven models - the SD and the SG.
