Abel Pumps : SH Solids Handling Pump
Solids Handling Pumps for difficult media at high pressure.
ABEL SH SOLIDS HANDLING PUMPS span a wide performance range and are suited for a large number of pumping media and applications. These high pressure pumps really prove their worth when extremely abrasive, paste-like and compact media (e.g. dewatered sewage sludge) or mine tailings with high solids content have to be conveyed safely at high pressure. This pump has extra wall thickness and a large intake valve, which, when combined with a very good filling ratio, produce a service life that is longer than the norm.

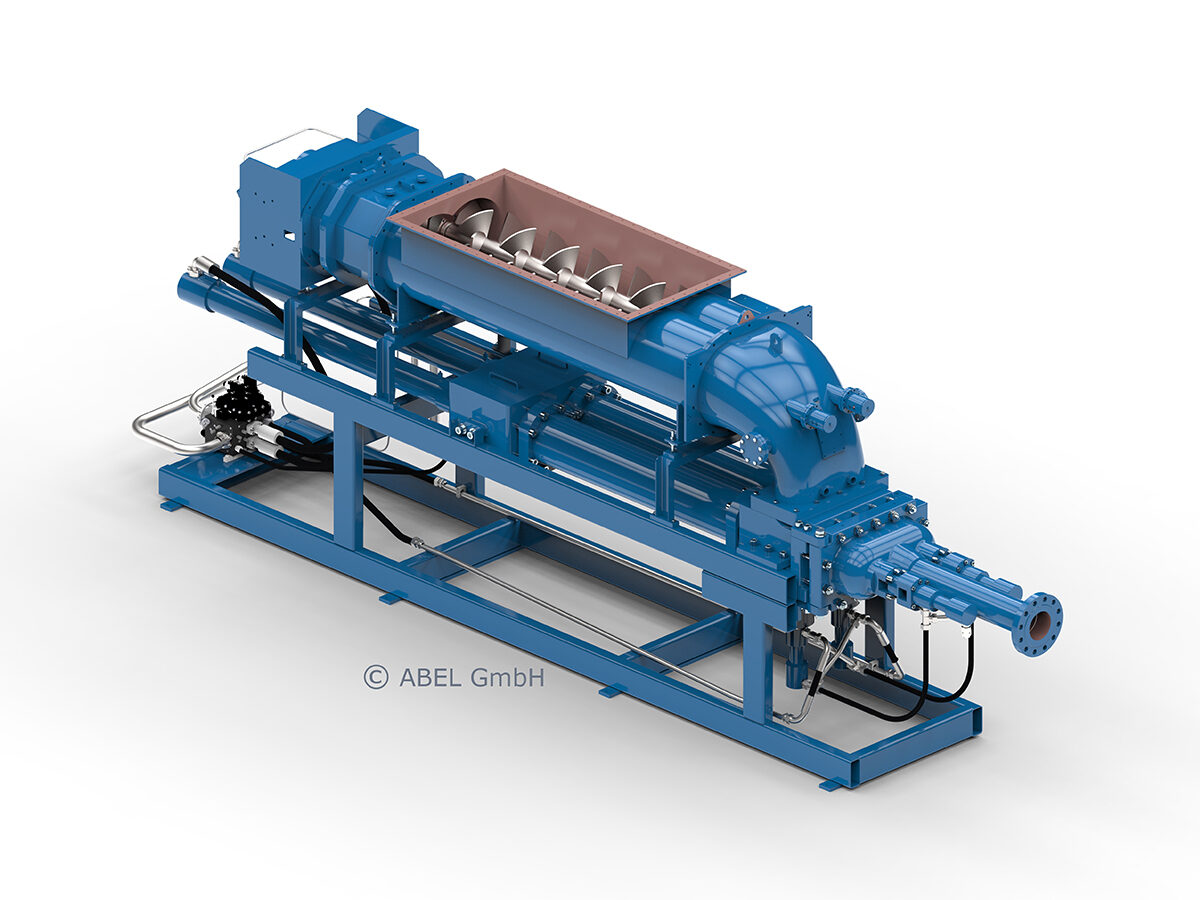

Along with the actual pump unit (consisting of sludge, hydraulic main and valve cylinders) an ABEL SH solids handling pump comprises a total of four components: the actual pump, the hydraulic drive unit, a screw feeder for sticky media to fill the product cylinder, and a control cabinet with PLC. The programmable logic controller is the “brain” of the system and allows for integration with complex processes and control room systems.
- Duplex piston pump with hydraulically-actuated cone valves – short-circuit free, even at high pressures
- Cone valves with elongated valve rods – safe protection against cross-contamination of the hydraulic circuit with the pumped media
- Electrical pump control as standard with modern PLC for local or external parameters, e.g. incinerator temperature control
- Capable of running dry
- Enclosed pipeline transfer
- Fully automatic, efficient disposal and feed operations
Technical Data
- Capacity: 1833 l/min or 110 m3/h
- Pressure: 160 Bar
- Temperature: Up to 200C
Materials
- Nodular Cast Iron, Stainless Steel.
Applications
- Backfilling
- Paste transfer
- Feeding incinerators with dewatered and pre-dried sludge
- Hazardous waste
- Chemical residues
- Solvents
Models
- SH
