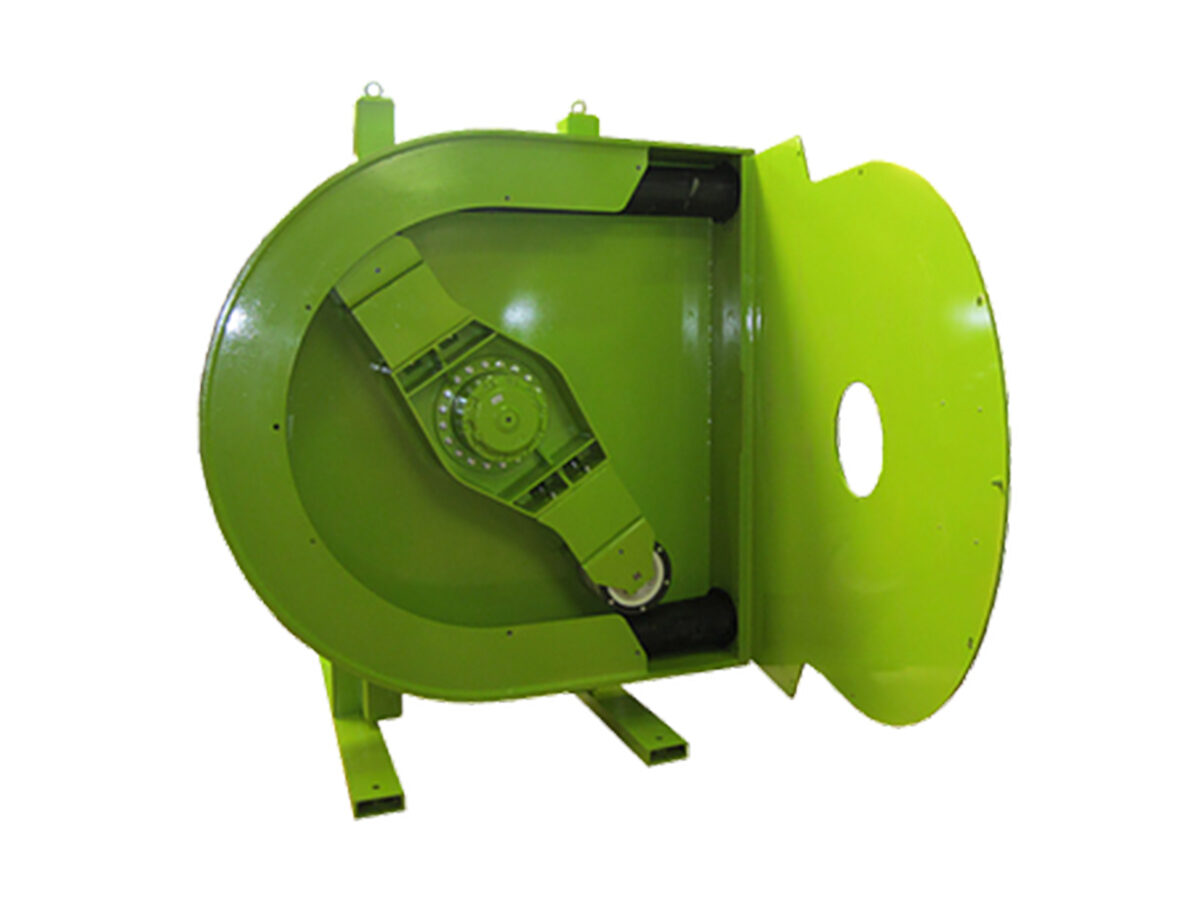

Albin : ALX150 Hose Pumps

The ALX150 pump provides one of the highest peristaltic pump flow rates in the world.

The ALX Series pump provides all the benefits of other peristaltic pumps with two key additional benefits of a much slower speed for a given flowrate; and rotating rollers for soft hose compression. These two features greatly increase hose life and reduce power consumption.

The ALX150 pump the biggest flow of peristaltic pumps in the world.

The pump uses soft action rotating rollers to compress the hose instead of hard fixed shoes that are standard on other industrial hose pumps. The advantage of the rollers is the gentle compression of the hose, losing very little power from surface friction. The soft rollers reduce power consumption dramatically which contributes to longer-life.

Performance Criteria

• Capacity: To 150m³/h
• Pressure: To 7.5 bar
• Temperature: To 60°C
• Viscosities: To 12,000 cps

Applications
Effluent Processing, Mining Waste/Water Transfer, Mud Slurry Transfer, Municipal Waste Transfer, Sea Tanker Offloading, Sand Slurry Transfer, Tailings Transfer, Thickener Underflow Feed, Fish Boat Offloading
