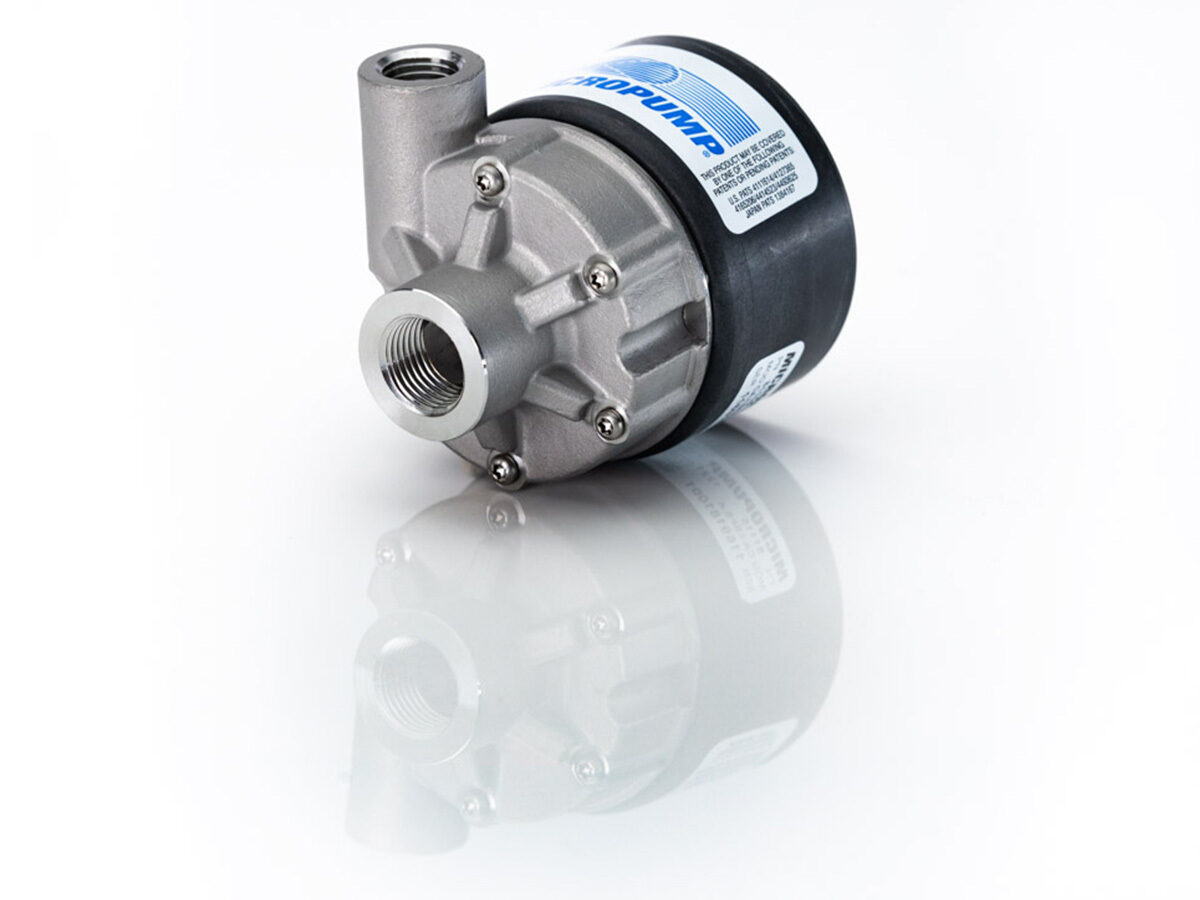

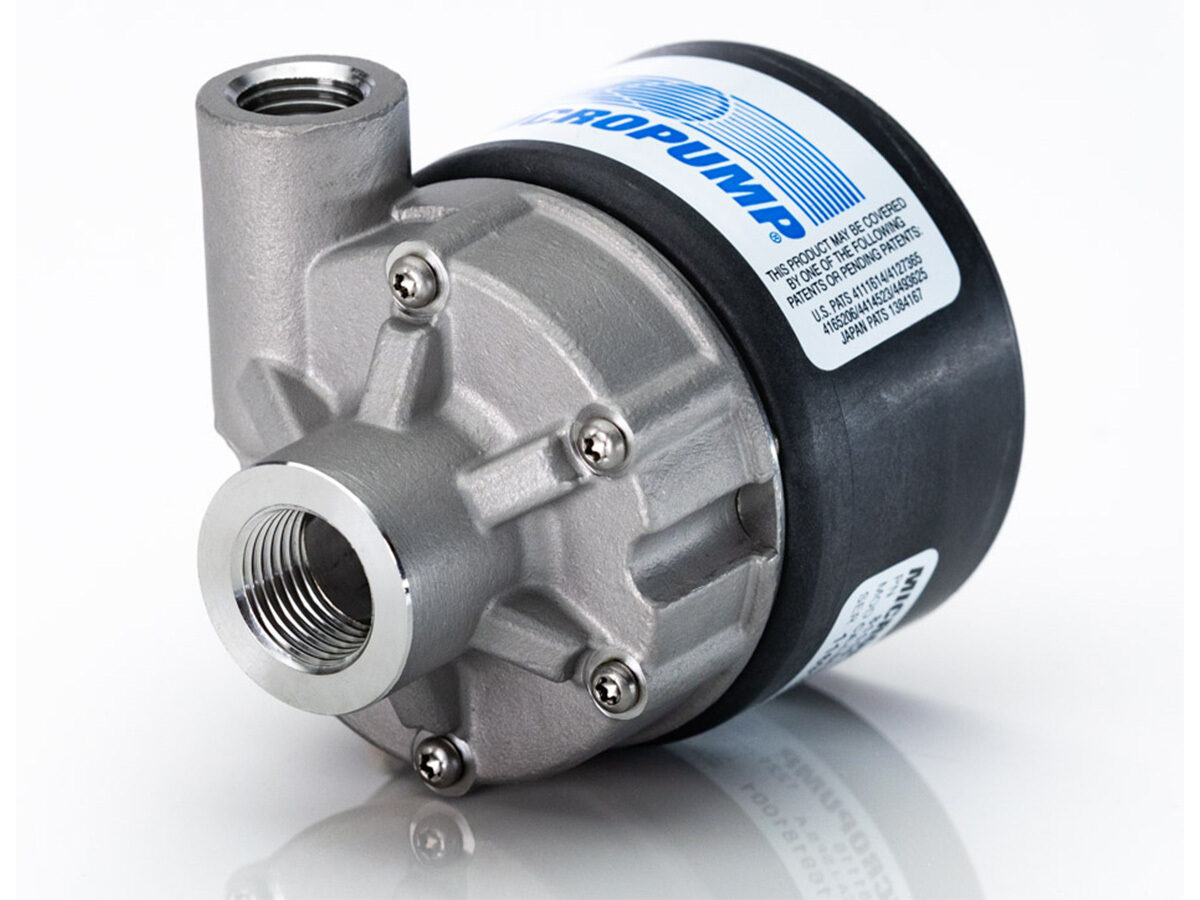

The CA Series Magnetic Drive Centrifugal Pump is ideal for high-flow applications requiring excellent chemical and abrasion resistance. The CA Series utilizes a unique magnetic drive technology, providing a virtually leak-free environment, energy-efficient fluid delivery, and compatibility with a wide range of motors.

The Series CA’s magnetic drive removes the need for direct drive connection to the pump impeller, eliminating leak points associated with shaft seals, while providing energy-efficient fluid delivery. Stainless steel construction provides superior chemical and abrasion resistance. For easy maintenance, the Series CA features an integrated impeller and magnet assembly to reduce the number of rotating parts and maximizing pump life.

Product Features

• Small Size
• Simple Construction
• Superior Chemical Resistance
• Energy Efficient Delivery
• Wide Motor Capability
• System Compatibility
• Enhanced Efficiency
• Proven Reliability

Technical Data

• Flow rate (max): 29.5 L/min
• Maximum head: 8 metres
• System pressure (max): 14 Bar (200 psi)
• Temperature range: -46⁰C to 121⁰C
• Viscosity range: Up to 100 cps
• Maximum recommended speed: 6000 rpm

Applications

• The ideal solution for high-flow applications requiring excellent chemical and abrasion resistance.

Pump Construction

• Magnetic drive centrifugal pump
• Stainless steel impeller
• PTFE bushings
