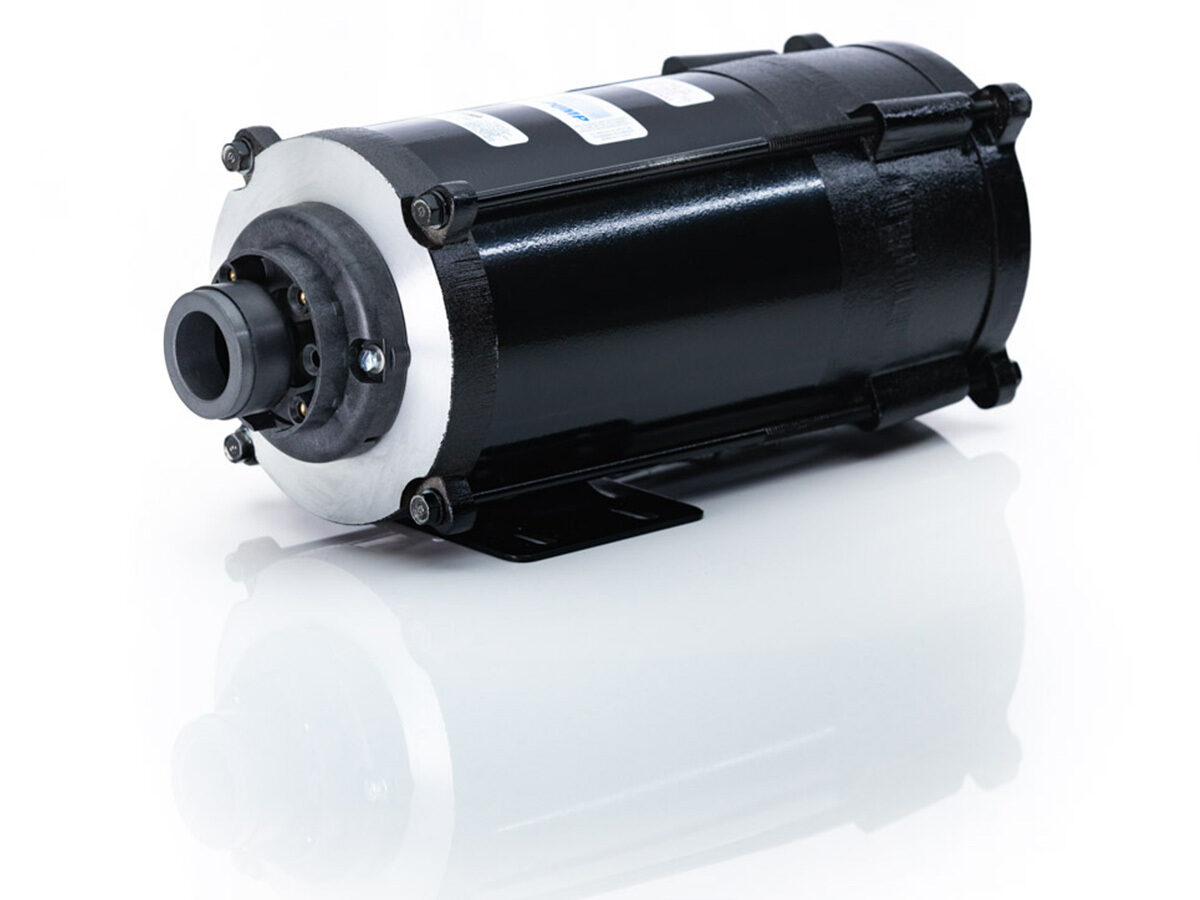

Micropump : DN-519.A Drives

AC Drive

The DN-519.A is a continuous duty, 115/230 VAC, 3450 RPM, Explosion Proof Drive for the GA, GB, GJ, and CA series pumps.

Technical Data

Drive type: Explosion Proof
Weight: 9.08 kg
Power (max): 127 W
Torque (max): 529.62 mNm
Power Source: 115/230 VAC
Mount: A-Mount
Speed Control: None
Connection: Wire leads
Enclosure: Class 1, Div 1. Groups C&D
Recommended speed range: 3450 RPM
Frequency: 50/60 Hz
