Micropump CA Series
Performance Data
- Flow rate (max): 29.5 L/min
- System pressure (max): 14 Bar (200 psi)
Applications
- The ideal solution for high-flow applications requiring excellent chemical and abrasion resistance.

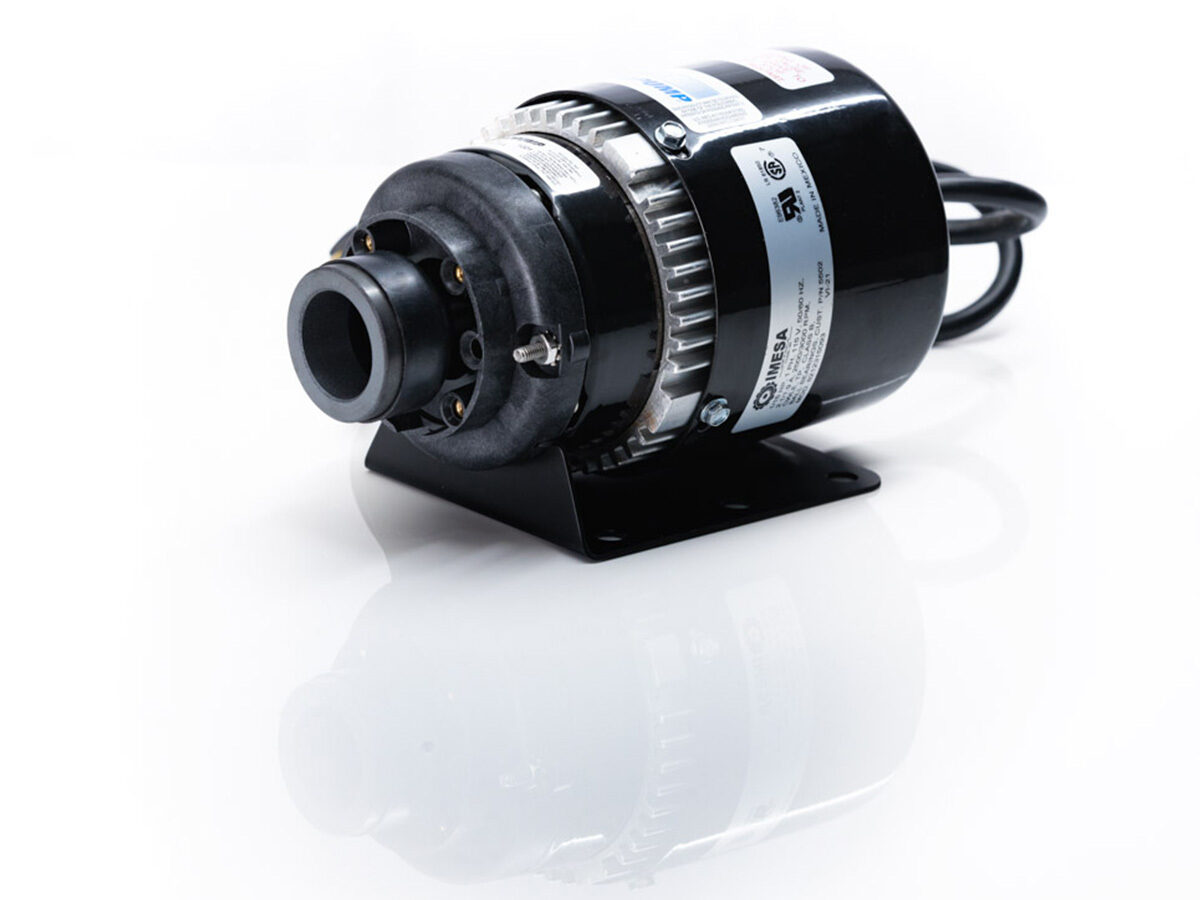

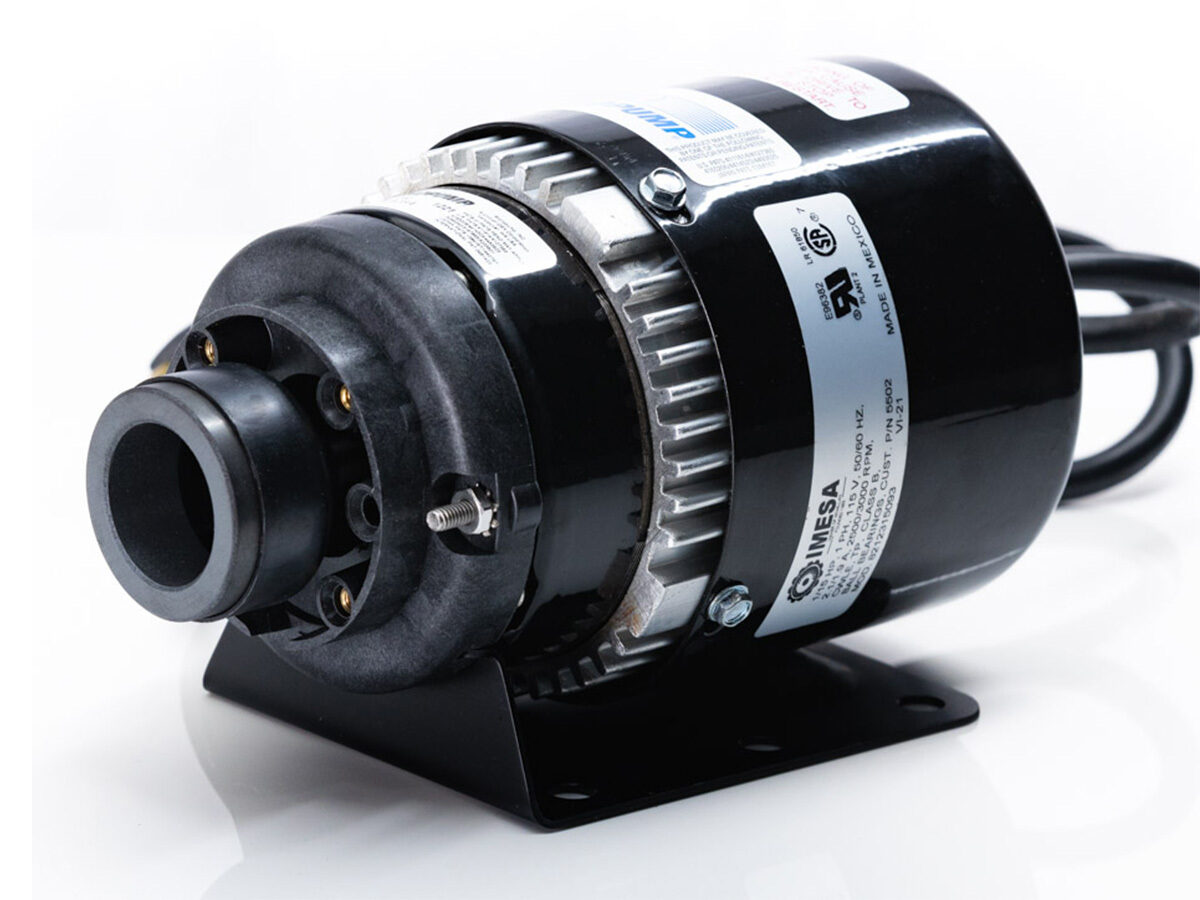

Micropump : DJ-605.A Drive
AC Drive
The DJ-605.A is a continuous duty, 115 VAC, 3450 RPM, Shaded Pole Drive for the GA, GB, GJ, and CA series pumps.
Technical Data
- Drive type: Shaded Pole
- Weight: 2.72 kg
- Power (max): 37 W
- Torque (max): 127.11 mNm
- Power Source: 115 VAC
- Mount: A-Mount
- Speed Control: None
- Connection: Cord and Plug
- Enclosure: TEFC
- Recommended speed range: 3450 RPM
- Frequency: 50/60 Hz
Similar Products
Micropump GA Series
Performance Data
- Maximum flow rate (at 5500 RPM): 506 mL/min
- Differential pressure (max): 5.2 Bar (75 psi)
- System pressure (max): 21 Bar (300 psi)
Applications
- Analytical equipment
- Fuel cell technology
- Diesel engine emissions control
Micropump GB Series
Performance Data
- Maximum flow rate (at 5500 RPM): 6.4 L/min
- Differential pressure (max): 8.6 Bar (125 psi)
- System pressure (max): 21 Bar (300 psi)
Applications
- GB Series pumps offer the flexibility to meet a wide range of applications with a compact size.
Micropump GJ Series
Performance Data
- Maximum flow rate (at 5500 RPM): 6.8 L/min
- Differential pressure (max): 5.5 Bar (80 psi)
- System pressure (max): 21 Bar (300 psi)
Applications
- Analytical equipment
- Fuel cell technology
- Pulp & paper bleaching
