Sandpiper : EvolutionX AODD pump

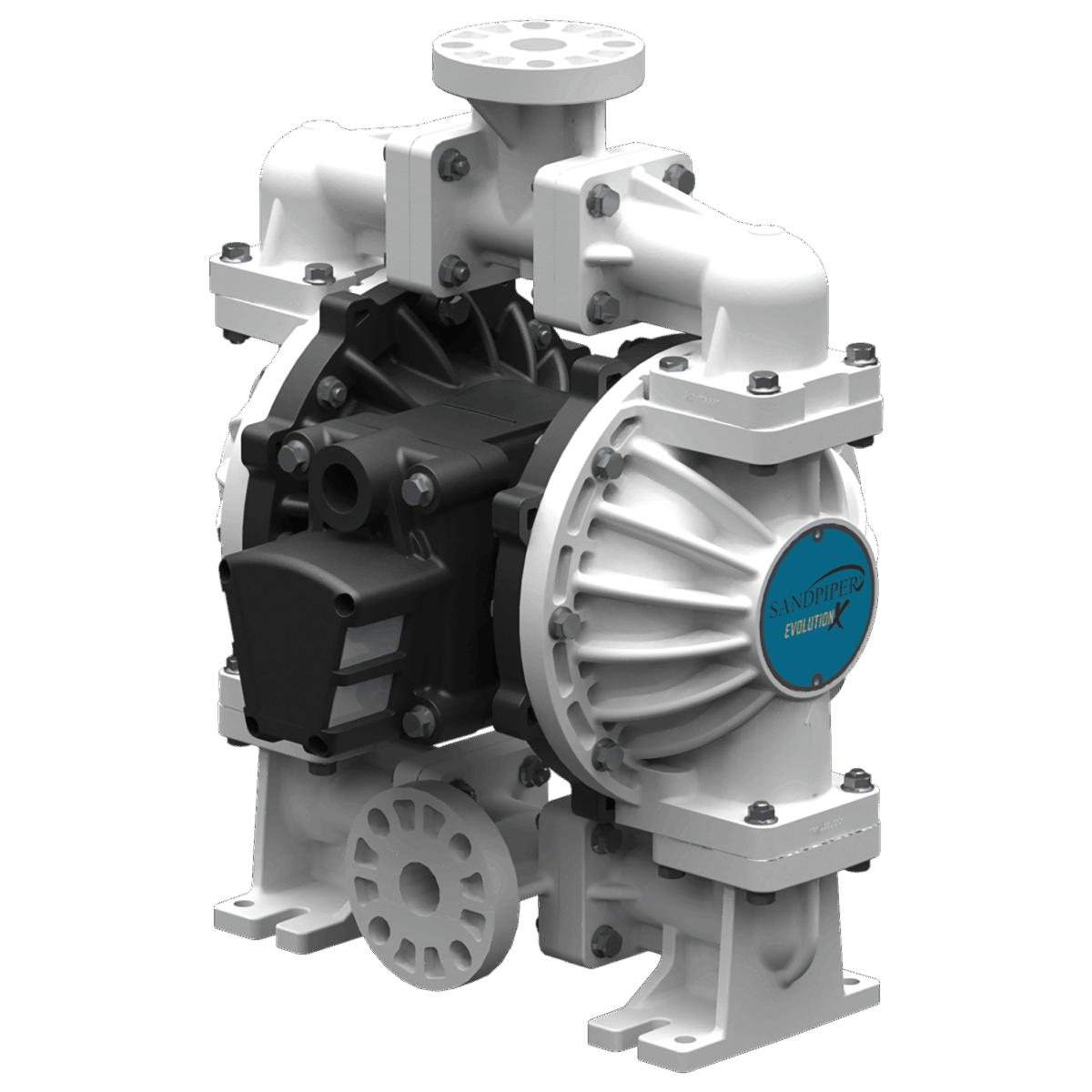

EvolutionX – The Next Generation of AODD Pump Performance
The Sandpiper EvolutionX AODD pump is the result of more than 55 years of research, engineering and innovation in fluid handling technology. Designed to deliver exceptional performance, energy efficiency and simplified maintenance, the EvolutionX sets a new benchmark for air operated double diaphragm pumps. With industry-leading flow rates, faster servicing and versatile configuration options, it helps reduce downtime, lower operating costs and improve overall reliability across demanding applications.
Features & Benefits
- Fast, simplified maintenance – Air distribution system servicing can be completed in around five minutes, significantly reducing downtime.
- Reduced assembly complexity – 50% fewer fasteners, with all wet side bolts the same size and length for easier servicing.
- Easy access to air side components – Only four bolts need to be removed to access the main air valve and pilot valve assembly.
- Improved operational safety – Integrated stand-off feet provide greater pump stability during maintenance and disassembly.
- Higher energy efficiency – Delivers an average 20% increase in air efficiency compared to previous models, reducing air consumption and operating costs.
- Outstanding pump performance – Achieves one of the highest flow rates available in a 1" AODD pump, up to 63 GPM (238 lpm).
- Versatile porting configurations – Available in centre ported, end ported and dual ported designs to suit a wide range of installations and processes.
- Flexible manifold design – Universal ANSI and ISO flanged connections allow quick adjustment of discharge orientation.
- Durable non-metallic construction – Corrosion-resistant materials including polypropylene and PVDF support demanding chemical and industrial applications.
- High pressure capability – Rated for operation up to 125 psi, with ATEX versions available for hazardous environments.
- Broad material compatibility – Multiple elastomer options available including Santoprene, PTFE, FKM, Nitrile and Neoprene for handling a wide range of fluids.
- Interchangeable mounting footprint – Mounting feet are compatible with existing SANDPIPER pumps and many competitor models, simplifying upgrades and replacements.
Typical Applications
- Chemical transfer and dosing
- Corrosive fluid handling
- Water and wastewater treatment
- Industrial process transfer
- Paints, coatings and inks
- Mining and mineral processing
- General manufacturing operations
- Drum unloading and tank transfer
- Fluid recirculation and batching
- Harsh and hazardous operating environments
