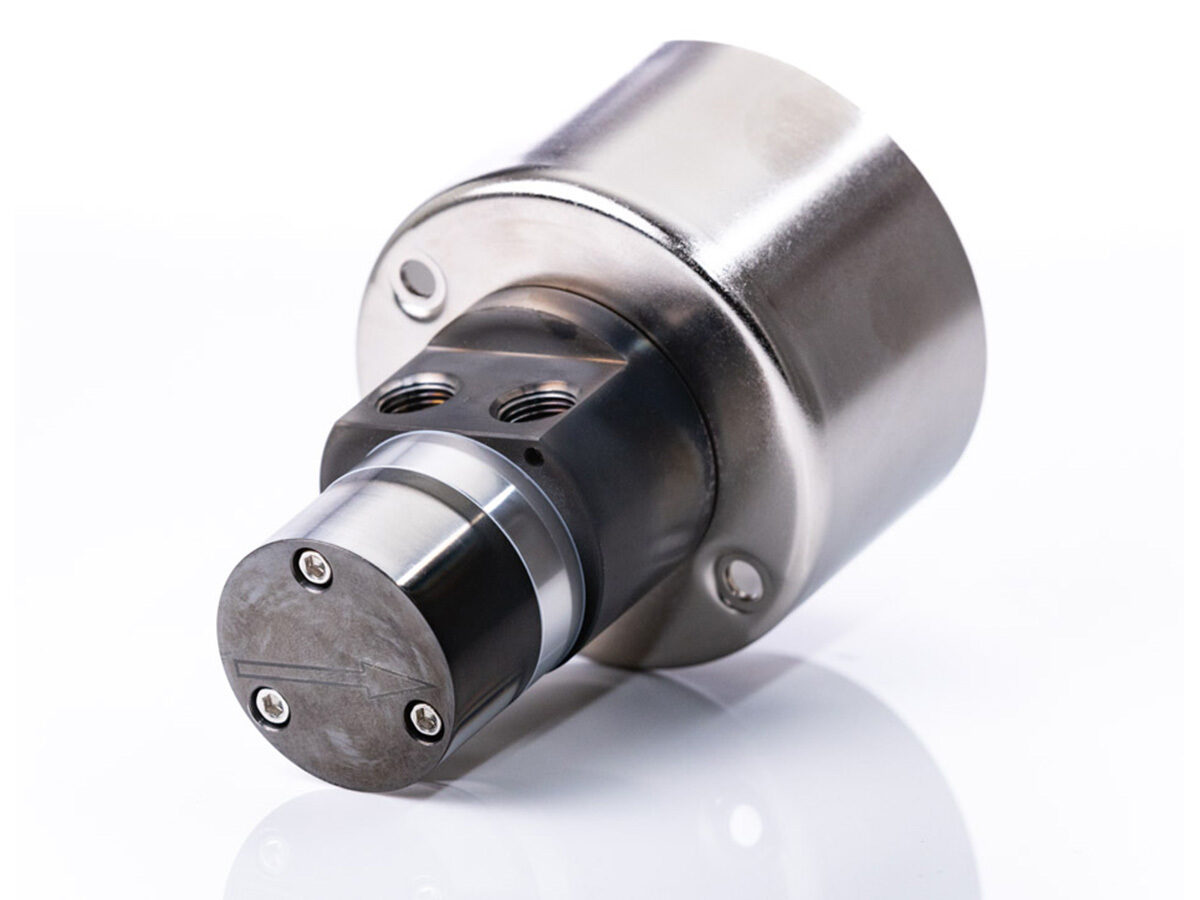

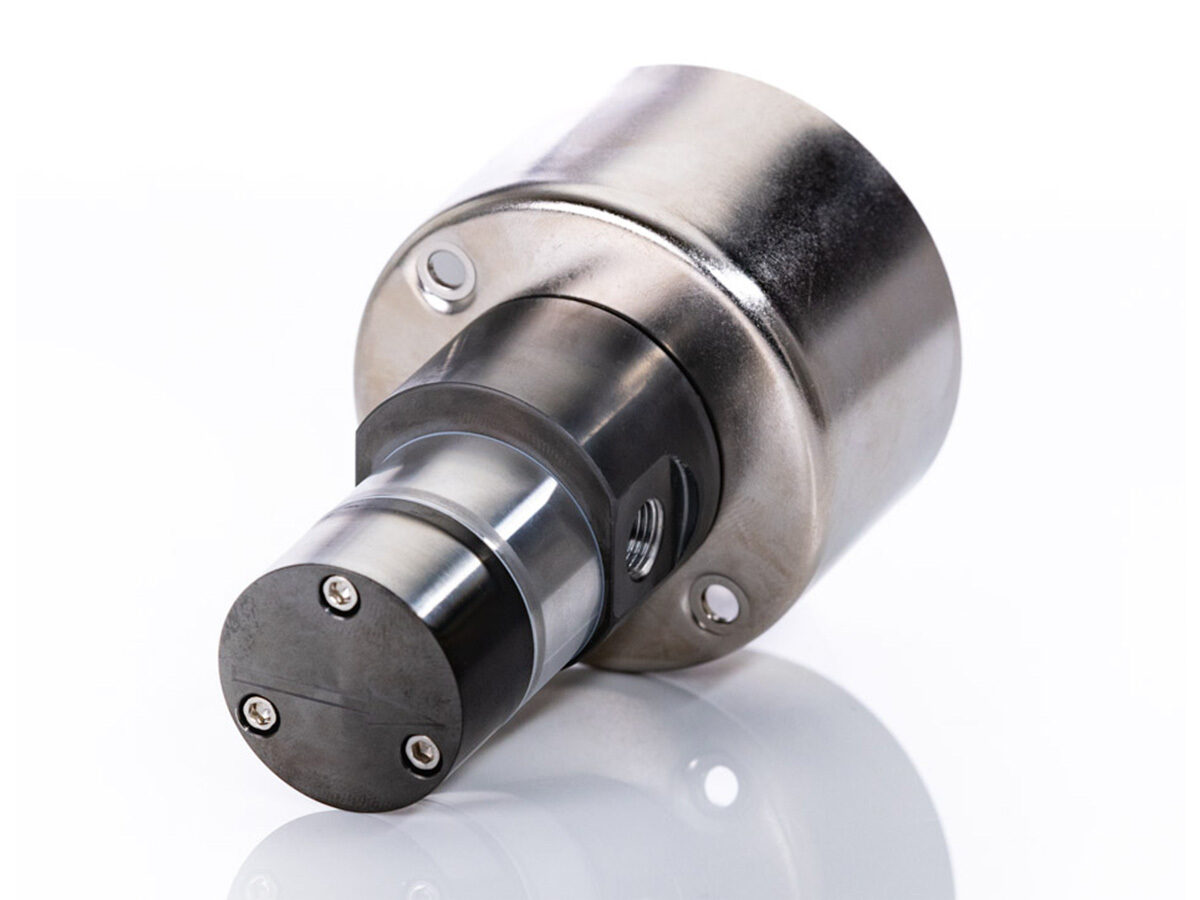

Micropump : GJR Series

Magnetic Drive Gear Pump

The GJR Series is your severe duty solution. From inception, the GJR has set the standard.

Abrasive fluids, such as pigmented paints and inks or metal loaded fluids, often cause significant pump wear, impacting pumping functionality and dramatically
shortening pump life. The GJR Series pumps use leading materials and design processes to deliver exceptional pump performance and reliability in challenging fluid applications.

Featuring a cavity style design, these pumps are excellent for wide-ranging inlet and outlet operating conditions and allow for intermittently pumping in reverse.

Product Features

• Chemical and abrasion resistant
• Small Size
• Smooth, Pulseless Delivery
• Easy to Service

• Proven Reliability
• Advanced Pump Technology
• OEM Configurations

• High-System Pressure Capability
• Enhanced efficiency

Technical Data

• Displacement:
  • 0.316 ml/rev (N21 gear set)
  • 0.64 ml/rev (N23 gear set)
  • 1.23 ml/rev (N27 gear set)
• Flow rate (at 4000 RPM): 4.92 L/min
• Differential pressure (max): 5.5 Bar (80 psi)
• System pressure (max): 21 Bar (300 psi)
• Temperature range: -46⁰C to 132⁰C
• Viscosity range: 0.5 to 1500 cps
• Recommended speed range: 500-5500 RPM

Applications

• Severe duty applications

Pump Construction

• Cavity style
• Side port
• Spur gears
• PTFE seal
